Product Images are shown for illustrative purposes only and may differ from actual product.

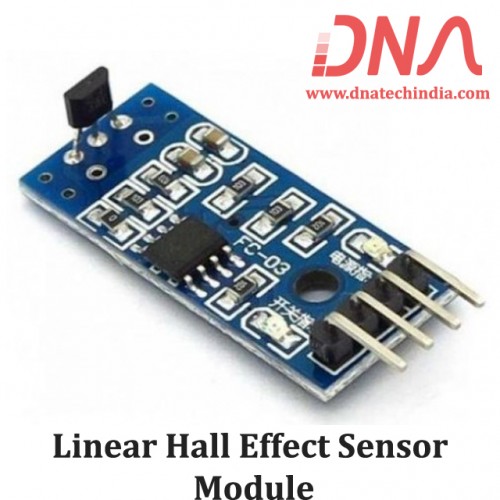

Linear Hall Effect Sensor Module
- Stock: 25
- SKU: 1988 | DAB014
-
Rs. 40.71 (inc GST)
Rs.34.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Linear Hall Effect Sensor Module
Comparator Based Linear Hall Effect Sensor Module
This is a Comparator based hall effect sensor Module. This Module is based on S49E linear hall effect sensor. Using this module you can digital as well as linear output.
This module can be used to detect the presence of an magnetic field. If there is an magnetic field present, it will report a high level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection.
We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features Of Hall Effect Sensor Module
- S49E hall sensor
- Features wide range voltage comparator LM393
- Adjustable sensitivity (potentiometer)
- Signal output indicator
- Analog / Digital output
Specifications of Hall Effect Sensor Module
- Volt : 2.3 Volts to 5.3 Volts
- Dimension : 27.0mm * 15.5mm
- Mounting holes size : 2.0mm
Applications of Linear Hall Effect Sensor Module
- Motor shaft speed measurement (shaft encoder)
- Object position detection
How to Use
In the case of working with Arduino / microntroller /Raspberry :
- VCC : 2.3 volts to 5.3 Volts
- GND : power supply ground
- AOUT (analog sensor output) : Arduino/ MCU input
- DOUT (digital sensor output) : Arduino/MCU input
