Product Images are shown for illustrative purposes only and may differ from actual product.

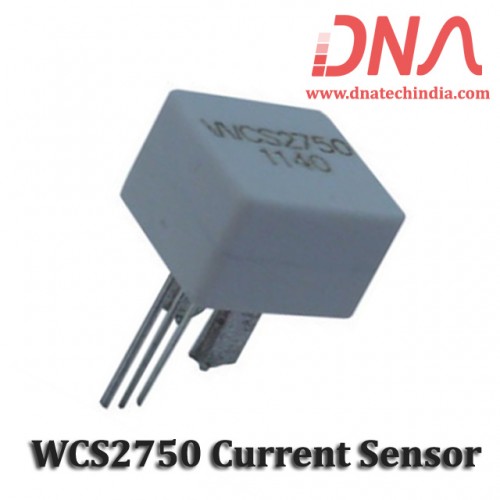

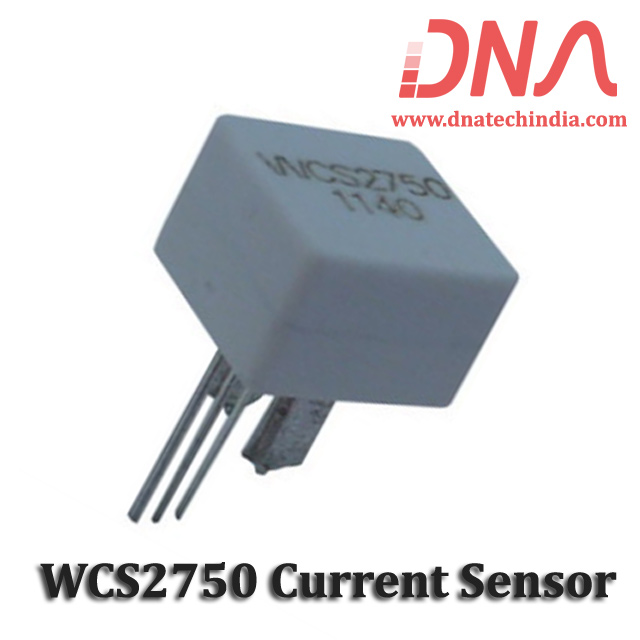

WCS2750 Hall Effect Linear Current Sensor
-
Rs. 259.60 (inc GST)
Rs.220.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
WCS2750 Hall Effect Base Linear Current Sensor
WCS2750 Current Sensor with 0 to 60 Ampere current sensing range and sensitivity of 32 mv/A.
The Winson WCS2750 current Sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc…
The WCS2750 current sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a current path with 85 μΩ typical internal conductor resistance. This extremely low resistance can effectively reduce power loss, operating temperature and increase the reliability greatly. Applied current flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.
The terminals of the conductive path are electrically isolated from the sensor leads. This allow the WCS2750 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.
DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.
Features of WCS2750 Hall Effect Base Linear Current Sensor
Low noise analog signal path
85 μΩ internal conductor resistance
Output voltage proportional to AC and DC current
Min. sensing current 0~60A at 5V voltage supply
High Sensitivity 32mV/A
Wide operating voltage range 3.0~12 V.
Low operating current 3mA
Nearly zero magnetic hysteresis.
Ratiometric output from supply voltage
23K Hz bandwidth
