Product Images are shown for illustrative purposes only and may differ from actual product.

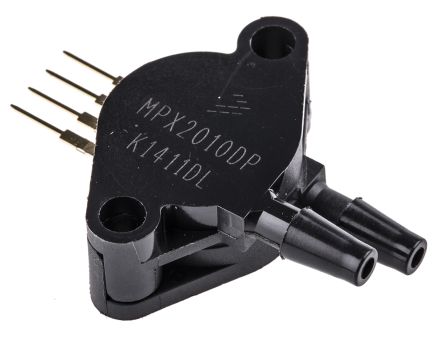

MPX2010 Pressure Sensor
- Stock: 1
- SKU: 1569 | DAA562
-
Rs. 1,156.40 (inc GST)
Rs.980.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MPX2010 Pressure Sensor
The MPX2010DP is a differential, dual port silicon pressure sensor in 4 pin SIP package.
This piezoresistive pressure sensor provides very accurate and linear voltage output directly proportional to applied pressure. It includes on-chip integrated strain gauge and thin film resistor network . The sensor is laser trimmed for precise span, offset calibration and temperature compensation.
MPX2010 Pressure Sensor Features
- On-chip temperature compensated and calibrated
- Pressure range from 0KPa to 10KPa
- 25mV full scale voltage
- Temperature compensated over 0°C to 85°C
- Ratiometric to supply voltage
- Sensitivity of 2.5mV/KPa
- Response time of 1ms
- Pressure hysteresis of ±0.1%VFSS
- Supply voltage range from 10VDC to 16VDC
- Operating temperature range from -40°C to 125°C
MPX2010 Pressure Sensor Specification
- Pressure Type : Differential
- Operating Pressure : 1.45 PSI (10 kPa)
- Output Type : Wheatstone Bridge
- Output : 0 mV ~ 25 mV (10V)
- Accuracy : ±1%
- Voltage - Supply : 10 V ~ 16 V
- Port Size : Male - 0.19" (4.93mm) Tube, Dual
- Port Style : Barbed
- Features : Temperature Compensated
- Termination Style : PCB
- Maximum Pressure : 10.88 PSI (75 kPa)
- Operating Temperature : -40°C ~ 125°C
- Package / Case : 4-SIP Module
MPX2010 Pressure Sensor Applications
- Sensing & Instrumentation
- Consumer Electronics
- Medical
