Product Images are shown for illustrative purposes only and may differ from actual product.

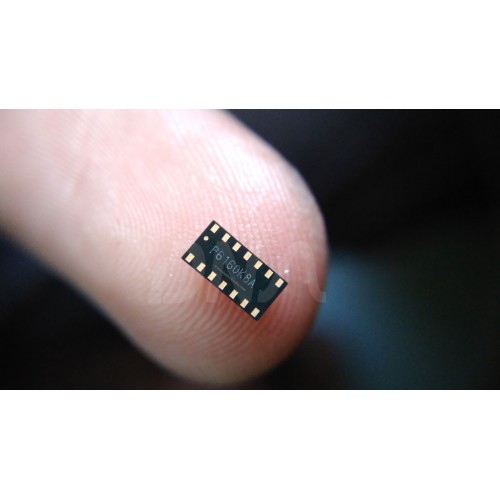

MAX30100 Pulse Oximeter and Heart-rate Sensor IC

  • Stock: Out Of Stock
  • SKU: 1364 | DAB638
  • Rs. 566.40 (inc GST)
    Rs.480.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MAX30100 Pulse Oximeter and Heart-rate Sensor IC

MAX30100EFD+ is a pulse oximeter and heart-rate sensor IC for wearable health in 14 pin OLGA package.

It combines two LEDs, a photodetector, optimized optics and low-noise analogue signal processing to detect pulse oximetry and heart-rate signals. It operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting power supply to remain connected at all times. It is used in wearable devices and fitness assistant devices.

If you want you can also buy the complete MAX30100 Module.

Features of MAX30100 IC

  • Supply voltage range is 1.7V to 2V
  • Operating temperature range from -40°C to 85°C
  • Complete pulse oximeter and heart rate sensor solution simplifies design
  • Integrated LEDs, photo sensor and high performance analogue front end
  • Ultra low power operation increases battery life for wearable devices
  • Programmable sample rate and LED current for power savings
  • Ultra low shutdown current of 0.7µA (typ)
  • High SNR provides robust motion artifact resilience, integrated ambient light cancellation
  • High sample rate capability
  • Fast data output capability

Applications of MAX30100 IC

  • Sensing & Instrumentation, Medical


Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
