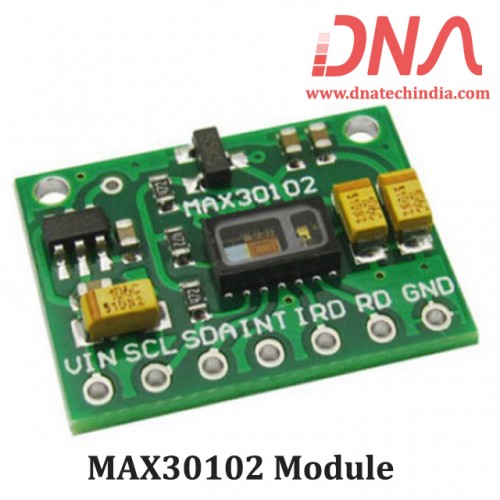

MAX30102 Module

MAX30102 Pulse Oximetry and Heart-rate Monitor Biosensor Module

The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Features of MAX30102

• Heart-Rate Monitor and Pulse Oximeter Biosensor in LED Reflective Solution

• Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module

            Integrated Cover Glass for Optimal, Robust Performance

• Ultra-Low Power Operation for Mobile Devices

            Programmable Sample Rate and LED Current for Power Savings

            Low-Power Heart-Rate Monitor (< 1mW)

            Ultra-Low Shutdown Current (0.7µA, typ)

• Fast Data Output Capability

            High Sample Rates

• Robust Motion Artifact Resilience

            High SNR

• -40°C to +85°C Operating Temperature Range

Applications of MAX30102

• Fitness Assistant Devices

• Wearable Devices
