YF-DN40 1.5" Water Flow Sensor


Write a review | 3 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-08-14

  • Brand: Generic
  • SKU: 1629 | DAB258

Availability: InStock priceValidUntil: 2026-08-14

  • Rs. 1,364.38 (inc GST)
    Rs.1,156.25 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

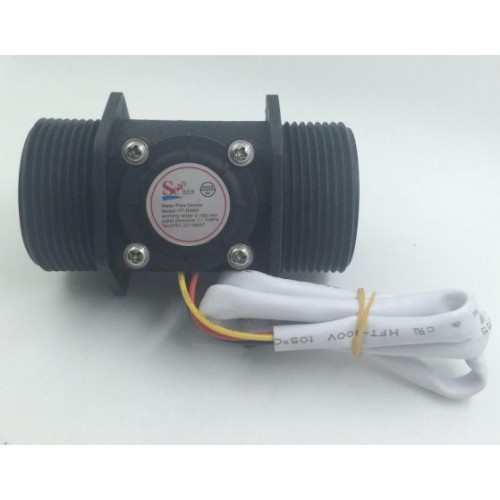

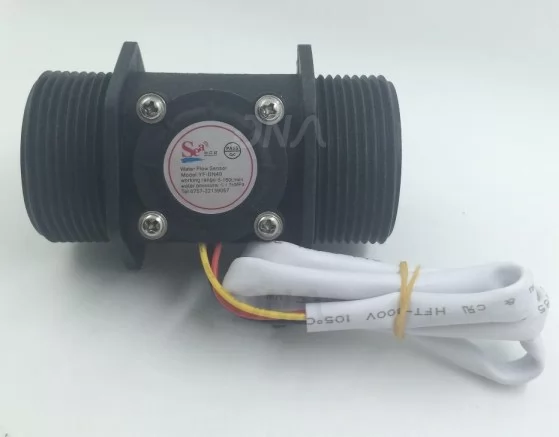

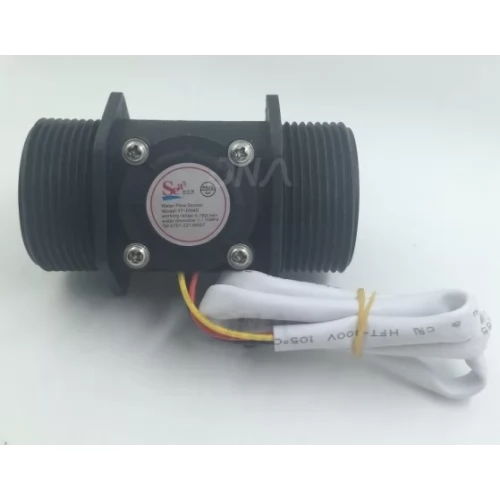

YF-DN40 1.5" Water Flow Sensor

YF-DN40 1.5 inch Industrial Water Flow Sensor

YF-DN40 is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features

  • Hydrostatic pressure> 1.75MPa meet
  • Operating voltage range DC 5 ~ 24V comply
  • Insulation resistance> 100M> 100M
  • Accuracy in 1 ~ 120L / MIN  ± 2% in line
  • Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
  • Low temperature test at -20'C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line
  • High-temperature test temperature at 85'C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value
  • 11/2" DN40 flow rate 5~150L/min  Plastic Hall Turbine flow sensor meter  switch valve control liquid flow sensor

Specifications

  • Product item no. : YF-DN40
  • Material : Plastic
  • Function : Sensor , flow rate control
  • Thread size :  BSP 1 1/2”
  • Size : L 92x OD46  X1.5"
  • Color : Black  color

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
