IR Wide Optical Slot Sensor

  • Stock: 50
  • SKU: 1750 | DAA709
  • Rs. 64.19 (inc GST)
    Rs.54.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

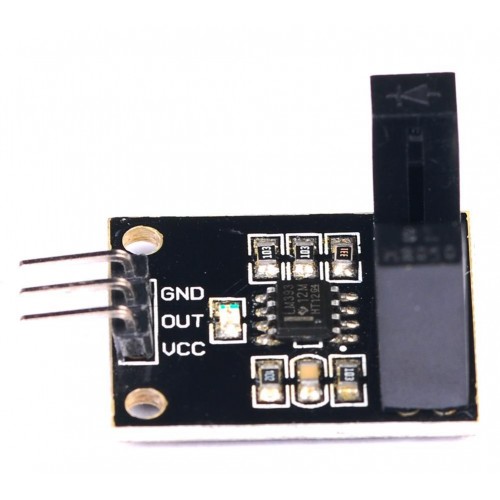

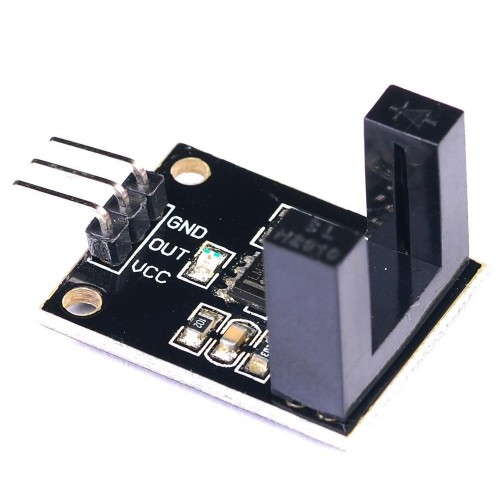

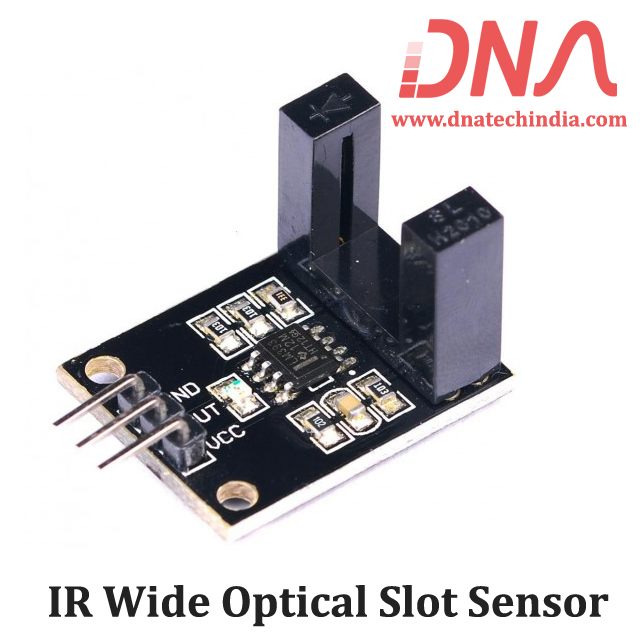

IR Wide Optical Slot Sensor

WYC-H2010 Widegap Optical IR Sensor Module

This is a IR based wide-gap sensor Module based on WYC-H2010 Sensor. This Wide IR Sensor Module is basically a photo-interrupter  consisting of a IR Transmitter on one side and a IR receiver on the other side. The distance between the transmitter and the receiver is 10 mm.

The module can be used with a microcontroller, Arduino and even Raspberry Pi for motor speed detection, pulse count, position detection, pulse counting. This module can basically detect when an object  passes between the transmitter and the receiver and breaks the beam.

Specifications Of Photoelectric Correlation Sensor Infrared Correlation Counting Sensor Module

  • Output : Digital
  • Model Number : Photoelectric Sensor
  • The main chip : LM 393 and WYC-H2010 IR Opto-interrupter
  • Working voltage : 5 Volt DC
  • Size : 32mm(length) *11mm(width)*20mm(height)
  • With signal output indicator.
  • Single signal output.
  • The effective output signal is of low level.
  • The sensitivity is not adjustable.
  • Circuit board output switch value
