Wireless RF Remote Control Switch 4 Channel

Wireless RF Remote Control Switch 4 Channel

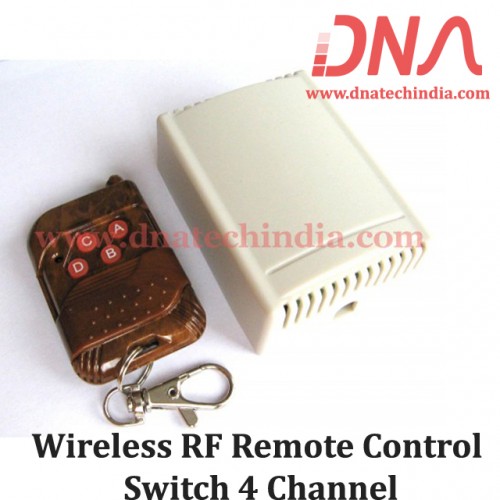

This is a easy to use four channel wireless RF Remote Control Switch.

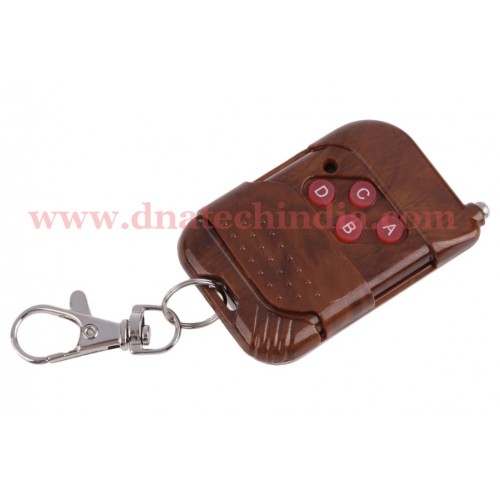

This RF Remote switch is very easy to install and operate wirelessly. Using this RF Remote Switch you can control four relay outputs wirelessly using the RF Transmitter. The RF Transmitter section is also very handy and easy to carry.

Specification of 4 channel RF Remote Control Switch

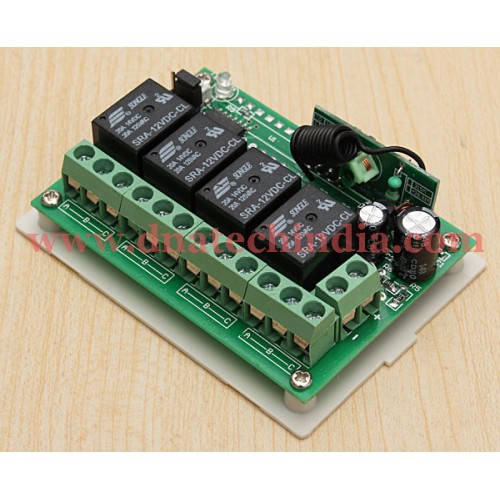

• Number of Relays : 4

• Working Voltage : 12 volts

• Working frequency : 315MHz/433.92MHz

• Contact capacity : <=10A / AC 250V, 10A / DC 30V;

• Receiving sensitivity : >-105 dB;

• Transmitting range : 100 m

Features of 4 channel RF Remote Control Switch

• Each channel can bear current up to 10 Ampere

• Can drive AC / DC load directly

• Each relay has a normally open / closed contact

• Suggested power : 1000 W (resistive load); 600 W (inductive load); 400 W (motor load)

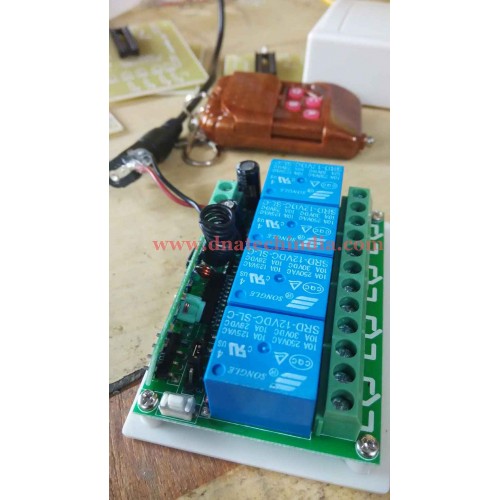

There is a special mode called as learning mode or pairing mode where the Transmitter will be paired with the receiver. For pairing a transmitter with a receiver press the learning button on the PCB then press two button one after another on the transmitter.The led on the receiver side will blink rapidly indication that it has received the signal.  The receiver will learn and remember the transmitter. You can add multiple transmitter in such way. If you want to clear the pairing list just press the learning button on the receiver side for more than 3 seconds and all paired list will be erased.

• Self Locking

• Interlock

• Inching

It has three modes of Operations

Application of 4 channel RF Remote Control Switch

This Wireless Remote switch is suitable for Home automation, wireless control of lifting equipment's like cranes, remote door/window control, anti theft alarm systems, wireless controlling of various electrical load.
