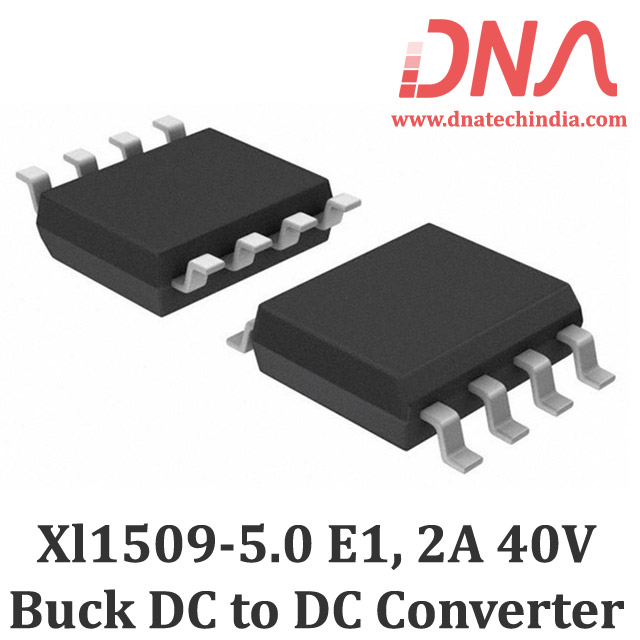

Xl1509-5.0 E1 Buck DC to DC Converter IC (SOP8L Package)

Write a review | 1 reviews

Stock: 100
Availability: InStock priceValidUntil: 2026-03-25
Brand: XL Semi
SKU: 3183 | DAC736

Rs. 25.96 (inc GST)
Rs.22.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Xl1509-5.0 E1 Buck DC to DC Converter IC

Xl1509-5.0 E1 5 Volts (Vout) 2 Ampere 150KHz 40 Volts (Vin) DC to DC Converter Buck IC

The XL1509 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2 Ampere load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

This version of XL1509 has a fixed 5 Volts output. Other versions like 3.3 Volts, 12 Volts & Adjustable are also available with us.

The PWM control circuit of XL1509 DC to DC Converter IC is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When second current limit function happens, the operation frequency will be reduced from 150 KHz to 50 KHz. An internal compensation block is built in to minimize external component count.

DNA solutions,Nashik has various types of Voltage Regulators & DC to DC Buck and Boost IC's. Check out our complete collection of DC to DC converter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Xl1509-5.0 E1 DC to DC Converter IC

Wide 4.5V to 40V Input Voltage Range

Output Fixed 5Volts

Maximum Duty Cycle 100%

Minimum Drop Out 1.5V

Fixed 150KHz Switching Frequency

2A Constant Output Current Capability

Internal Optimize Power Transistor

High efficiency

Excellent line and load regulation

TTL shutdown capability

ON/OFF pin with hysteresis function

Built in thermal shutdown function

Built in current limit function

Built in second current limit function

Available in SOP8L package
