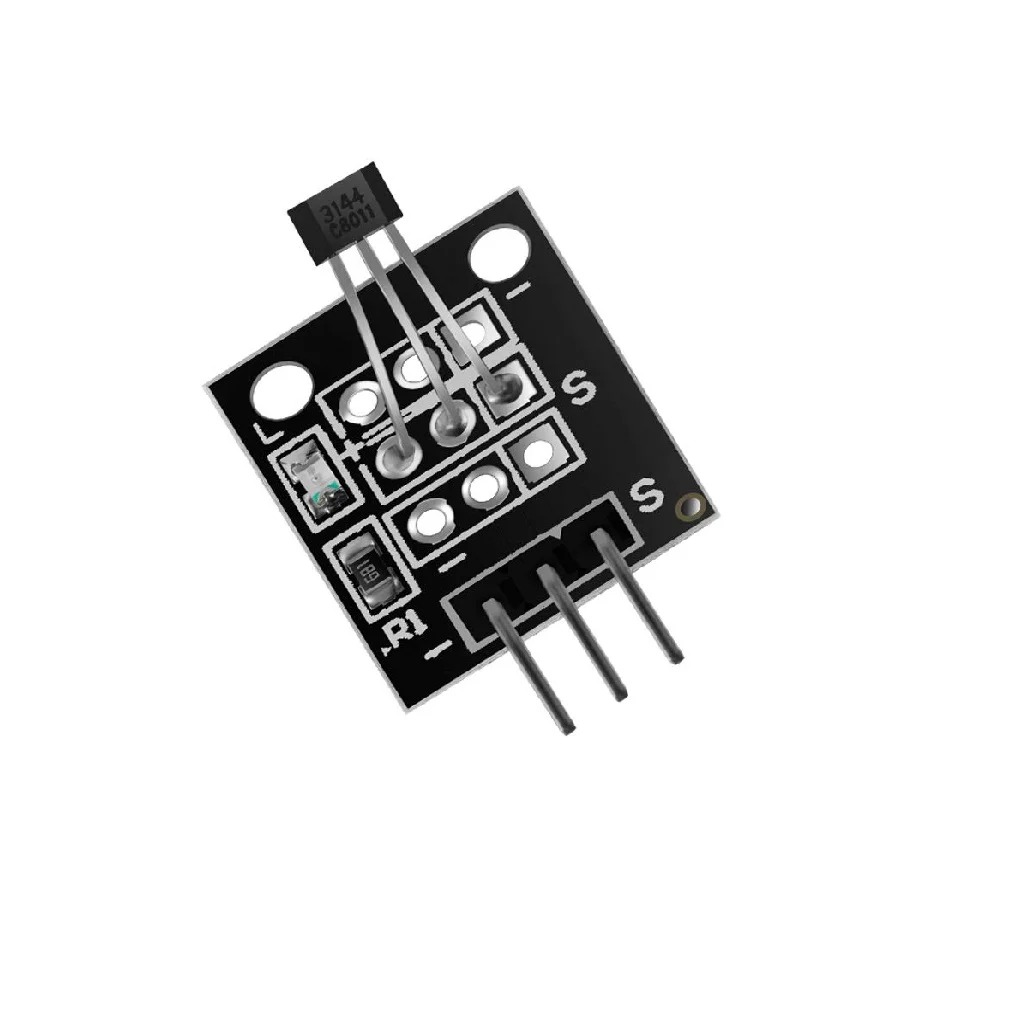

A3144 Hall Effect Sensor Module

A3144 Hall Effect Sensor Module

The A3144 Hall Effect Sensor Module is a magnetic field sensor that detects the presence of a magnetic field and outputs a digital signal. Using the popular A3144 Hall effect IC, this module offers high sensitivity and fast response, making it ideal for contactless switch applications. It operates with a simple digital on/off output, which makes interfacing with microcontrollers and logic circuits straightforward. Commonly used for position sensing, rotational sensing, speed measurement, and proximity detection in automation systems, robotics, and consumer electronics.

DNA solutions, Nashik has various types of Sensor Modules. Check out our complete collection of Sensor Modules.

Features of A3144 Hall Effect Sensor Module

• Digital output signal

• High sensitivity to magnetic fields

• Fast response time

• Simple interfacing with microcontrollers

• Compact module design

• Reliable and robust operation

Specifications of A3144 Hall Effect Sensor Module

• Operating voltage: 4.5V to 24V DC

• Output type: Digital

• Output current: 25 mA max

• Sensing type: Unipolar Hall effect

• Operating temperature: -40°C to +85°C

Applications of A3144 Hall Effect Sensor Module

• Position and proximity sensing

• Speed and RPM measurement

• Rotational encoding in motors

• Contactless switch applications

Package Includes

      1 x A3144 Hall Effect Sensor Module
