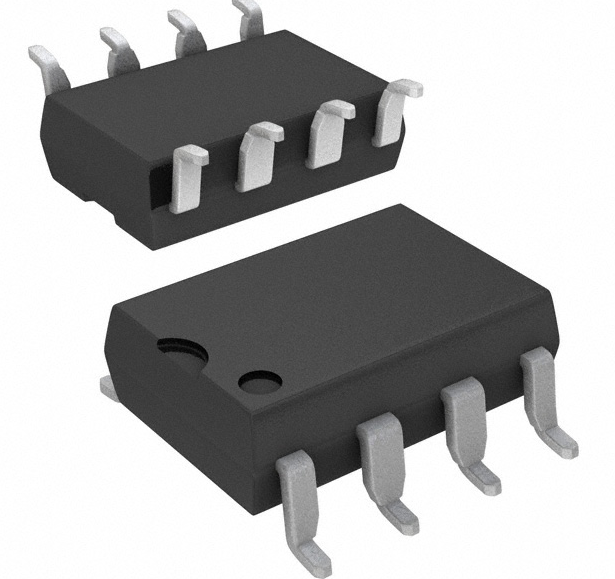

A4506 is a high-speed logic output optoisolator IC in SMD package. It integrates a high-efficiency infrared LED and a photodetector IC for reliable signal isolation. Provides fast switching performance and is suitable for TTL or CMOS logic interfaces. Ensures safe signal transmission between high-voltage and low-voltage circuits. Widely used in microcontroller interfacing, signal isolation, and industrial control systems.

DNA solutions, Nashik has various types of Optoisolator IC's. Check out our complete collection of Optoisolator IC's.

• Logic-level output for direct connection to digital circuits

• High-speed switching capability

• Low input current requirement

• Excellent insulation voltage

• Compact SMD package

Specifications of A 4506 Logic Output Optoisolator SMD IC

• Input type: Infrared LED

• Output type: Photodetector IC with open-collector or logic output

• Isolation voltage: ~3750 Vrms

• CTR: Typically 15–50%

• Operating temperature: –40 °C to +100 °C

Applications of A 4506 Logic Output Optoisolator SMD IC

• Microcontroller and logic signal isolation

• PLC and industrial automation systems

• Switching power supplies

• Data communication interfaces

Package Includes

      1 x A 4506 Logic Output Optoisolator SMD IC
