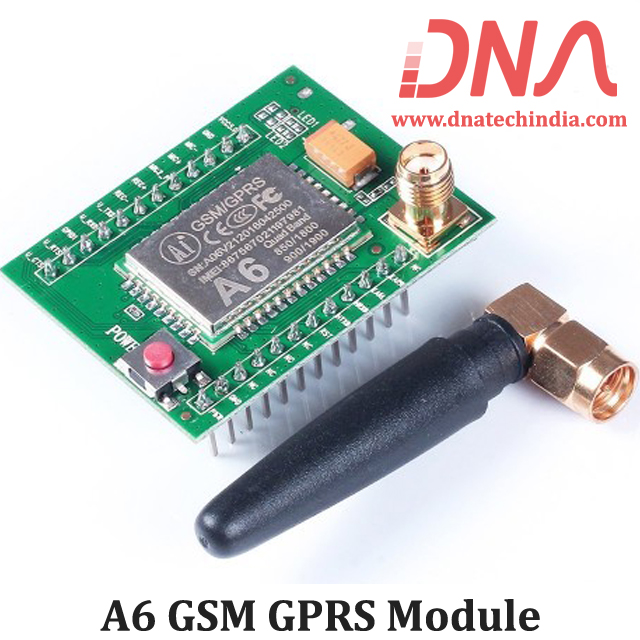

A6 GSM GPRS Module

A6 GSM Module is a low cost alternative to Sim800 & Sim900 GSM Modules.

It is made by AI-Thinker. Yes the same AI-Thinker that brings to you the low cost ESP8266 wifi Modules.

A6 Quad-band GPRS and GSM module, is one of the smallest cutting-edge products in the world. It adopts LCC package technology and offers the highest reliability and robustness.Depending on the ultra tiny configuration of 22.8 × 16.8 × 2.5 mm and easier soldering process, it is capable of being embedded in almost all customer applications.

Featuring an industrial-standard interface, A6 delivers GSM/GPRS performance for SMS, Data and Voice with extremely low power consumption and extended temperature.Extraordinarily compact size and integrated protocols ensure A6 easily meet the requirements of all M2M applications, including VTS, Industrial PDA, Personal Tracking,Wireless POS, Smart Metering and many other M2M applications.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

 Features of A6 GSM GPRS Module

• Chip Dimensions : 22.8 × 16.8 × 2.5mm

• Board Dimensions : 34.0 X 43.0 X 1.7mm

• Working temperature : -30  to + 80

• Working voltage : 3.3V-4.2V

• Power voltage : > 3.4V

• Standby average current 3ma less

• Support GSM / GPRS quad-band, including 850,900,1800,1900MHZ

• Support China Mobile and China Unicom's 2G GSM network worldwide

• GPRS Class : 10

• Sensitivity  : <-105;

• Support voice calls

• Support SMS text messaging

• Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps

• Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker

• Supports two serial ports, one serial port to download an AT command port

• AT command supports the standard AT and TCP / IP command interface

• Support digital audio and analog audio support HR, FR, EFR, AMR speech coding

• SMT 42PIN

Package Included:

• 1 X A6 GPRS GSM Module Adatper Plate

• 1 X antenna
