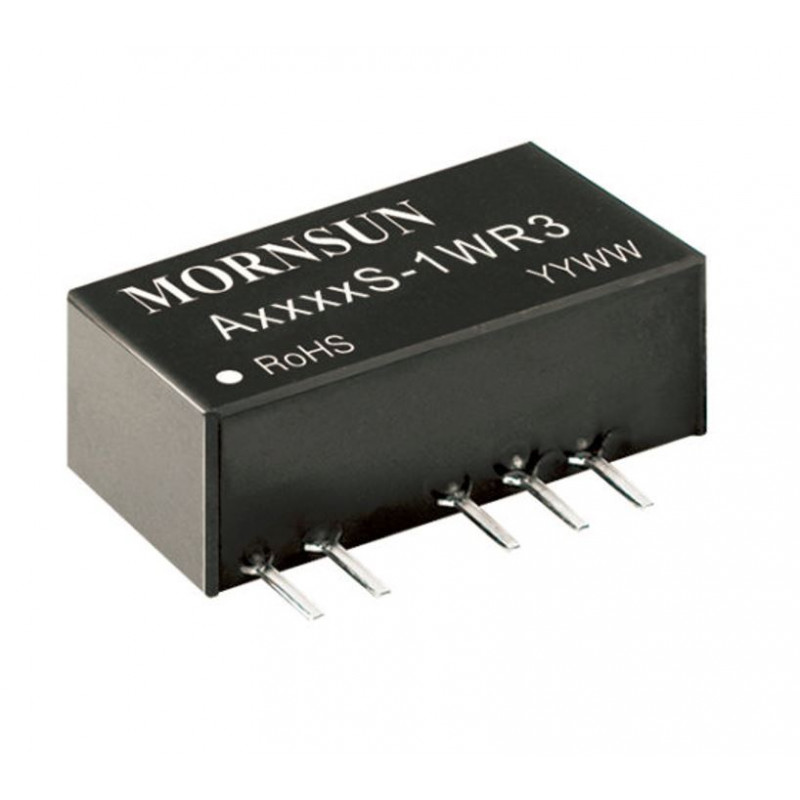

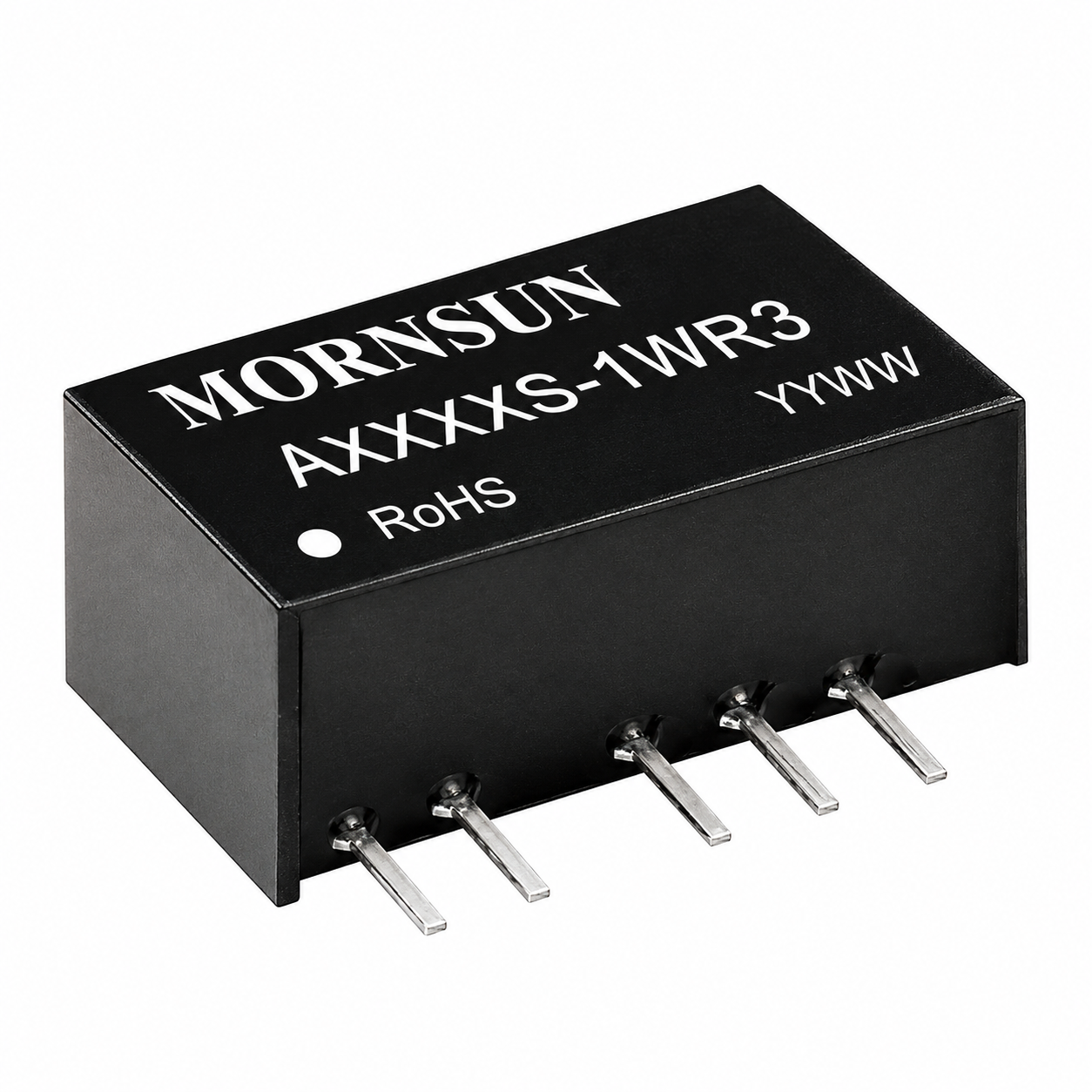

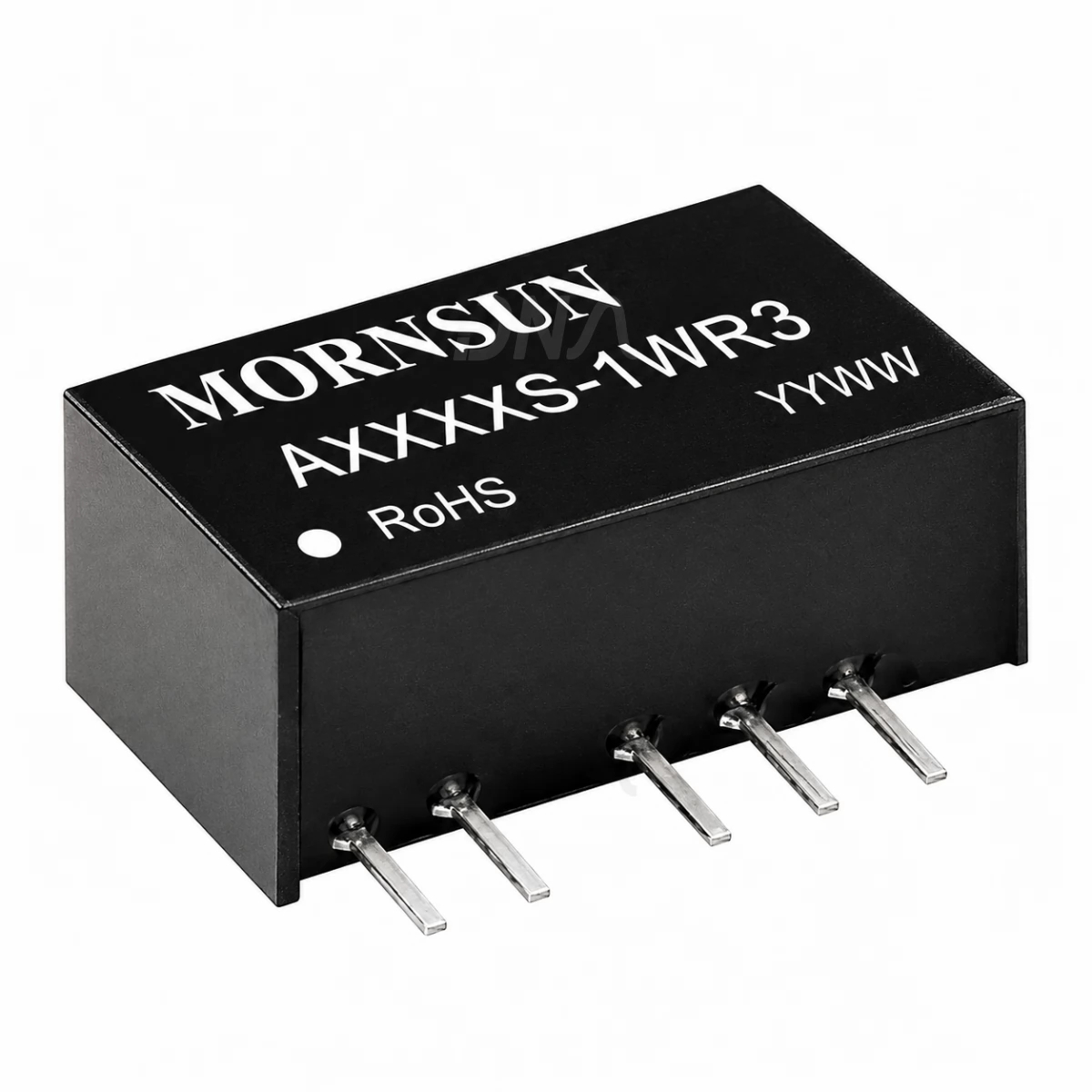

MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module

Name: MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module
Brand: Mornsun
SKU: DAG663
Price: 257.83 INR
Availability: InStock
Rating: 3 (1 reviews)

Write a review | 1 reviews

Stock: 3
Availability: InStock priceValidUntil: 2026-11-29
Brand: Mornsun
SKU: 3963 | DAG663

Rs. 257.83 (inc GST)
Rs.218.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module

A0515S-1WR3 isolated DC/DC converter module with dual ±15 V outputs, 1 W rated power and a 4.5–5.5 VDC input range.

The MORNSUN A0515S-1WR3 is an isolated DC/DC converter module for circuits that need dual supply rails from a 5 V input. It provides dual ±15 V outputs and has a rated output power of 1 W.

Its input-to-output isolation separates the input and output sides. The unregulated design and industry-standard pin-out support integration into electronic circuits. Continuous, self-recovering short-circuit protection helps the module resume operation after a short circuit clears.

Use this 5 V to ±15 V converter in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data-switching circuits. Its dual outputs can supply circuits that need both positive and negative voltage rails.

Find MORNSUN power modules at DNA for designs that need DC to DC Converter Modules. Compare this isolated dual-output unit with other options for your circuit. Check other DC to DC Converter Modules that we have in stock

For Indian electronics buyers, DNA can help source hard-to-find parts with import support and retail or bulk order options. Ask us about Connectors, Power Supply, Development boards, MOSFETs and Inductors. Contact Us

Features of MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module

Isolated input and output
Fixed-input, unregulated dual-output conversion
Continuous, self-recovering short-circuit protection
Industry-standard pin-out

Specifications of MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module

Rated output power: 1 W (series rating)
Input voltage range: 4.5–5.5 VDC
Output voltage: ±15 VDC, dual output
Output current: ±34 mA maximum and ±4 mA minimum
Efficiency: 79% minimum, 83% typical (full load)
Isolation test voltage: 1500 VDC minimum (input-to-output, 1-minute test)
Operating temperature: −40°C to +105°C (derating applies at 85°C and above for 5 VDC input)
Dimensions: 19.65 × 6.00 × 10.16 mm

Applications of MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data-switching circuits

Package Includes

1 X MORNSUN A0515S-1WR3 Isolated Dual-Output DC/DC Converter Module
