Product Images are shown for illustrative purposes only and may differ from actual product.

MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

  • Stock: 200

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Mornsun
  • SKU: 7817 | DAH611

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 199.42 (inc GST)
    Rs.169.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

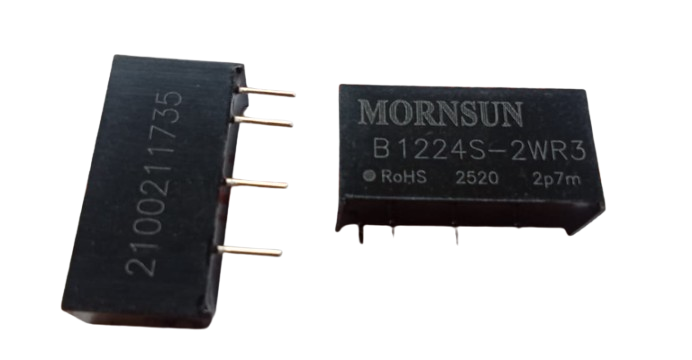

MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

MORNSUN B1224S-2WR3 isolated DC-DC converter module with 12 VDC input, 24 VDC output and 2 W rated power.

The MORNSUN B1224S-2WR3 is an isolated DC-DC converter module that converts a nominal 12 VDC input to a single, unregulated 24 VDC output. Its 2 W rated output suits circuits that need a separate 24 V supply from a 12 V source.
The input-to-output isolation helps separate the two sides of the power circuit. Continuous, self-recovering short-circuit protection helps the module resume operation after a short circuit clears. Its unregulated output is suited to designs that can work with this type of supply.
Use this 12 V to 24 V converter in distributed power supply systems. Its isolated conversion function can help supply a separate voltage rail within a larger electronic system.
Order MORNSUN modules from DNA, a retailer of electronic components in India. Browse our range of DC to DC Converter Modules for power conversion needs. Check other DC to DC Converter Modules that we have in stock
If you cannot find a part, contact DNA. We support Indian electronics buyers with import assistance and both retail and bulk orders. Ask us about related Transistors, Development Modules, Microcontrollers, Sensor Modules, Inductors or Resistors. Contact Us

Features of MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

  • Input-to-output isolation separates the two power circuit sides
  • Continuous short-circuit protection helps protect the module during a fault
  • Self-recovering protection allows operation to resume after a short circuit clears
  • Single unregulated output suits circuits designed for an unregulated supply
  • Low no-load input current supports low standby input demand

Specifications of MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

  • Nominal input voltage: 12 VDC (operating range 10.8–13.2 VDC)
  • Output voltage: 24 VDC, single output
  • Output current: 8 mA minimum, 83 mA maximum
  • Rated output power: 2 W
  • Full-load efficiency: 82% minimum, 86% typical
  • Input-to-output isolation: 1500 VDC minimum for a 1-minute electric strength test, with leakage current up to 1 mA
  • Operating temperature: −40°C to +105°C, with derating at temperatures of 85°C and above
  • Dimensions: 19.65 × 7.05 × 10.16 mm

Applications of MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

  • Distributed power supply systems

Related Links for MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module

Package Includes

  • 1 X MORNSUN B1224S-2WR3 Isolated DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
