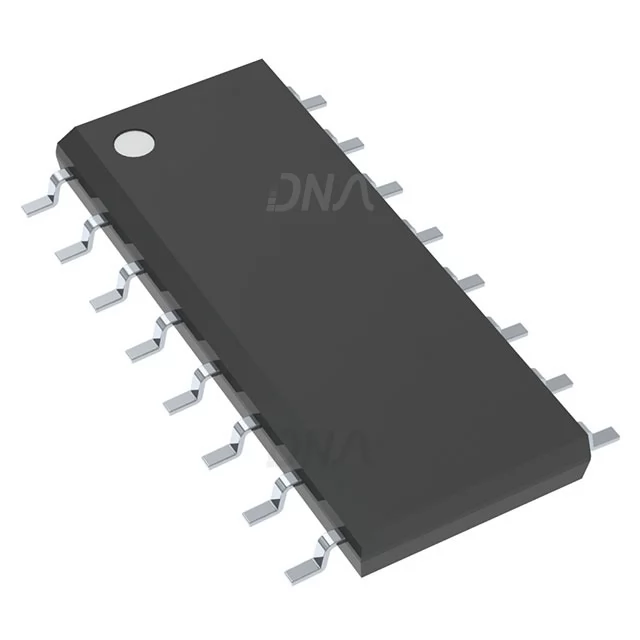

BQ2013H Battery Monitor with Internal Coulomb Counter IC

BQ2013H Battery Monitor with Internal Coulomb Counter IC

BQ2013H IC for accurate charge measurement; Supports NiCd, NiMH, and Li-ion; Operating current of 250 µA.

The BQ2013H Battery Monitor with Internal Coulomb Counter IC is designed for precise monitoring of rechargeable battery charge levels. It accurately measures voltage drop across a sense resistor, allowing it to track charge and discharge activities effectively. Ideal for high-capacity battery packs in demanding applications, this IC compensates for temperature and self-discharge, ensuring reliable capacity readings. This makes the BQ2013H Battery Monitor with Internal Coulomb Counter IC perfect for electric assist bicycles and other systems requiring accurate battery data.

With a supply voltage range of 2.7 V to 5.5 V and support for various battery types including Lithium-ion, Nickel-Metal Hydride, and Nickel-Cadmium, the BQ2013H Battery Monitor with Internal Coulomb Counter IC integrates seamlessly into battery packs. Its automatic compensation features enhance performance across a wide range of operating conditions, ensuring that users have a clear understanding of battery status.

For those in need of a reliable battery monitoring solution, the BQ2013H Battery Monitor with Internal Coulomb Counter IC offers a low standby current of 120µA in self-discharge estimation mode. This makes it an efficient choice for applications that demand accuracy and reliability in battery management.

Explore top-quality products from DNA in the Battery & Battery Holder category. The BQ2013H IC ensures accurate battery monitoring for various applications. Check other Battery & Battery Holder that we have in stock.

If you are searching for specific electronic components, DNA can help. We support retail and bulk orders and can import items if needed. From Diodes to Sensors, we have a range of products. Contact Us.

Features of BQ2013H Battery Monitor with Internal Coulomb Counter IC

• Accurate measurement of available charge
• Supports NiCd, NiMH, and Li-ion batteries
• Automatic charge and self-discharge compensation
• Designed for battery pack integration
• 120µA typical standby current.

Specification of BQ2013H Battery Monitor with Internal Coulomb Counter IC

• Supply Voltage (VCC): 2.7 V to 5.5 V
• Operating Current: 250 µA (typical)
• Temperature Range: -20°C to +85°C
• Input Voltage Range (Sense Inputs): ±1 V
• Communication Protocol: 1-wire or 2-wire serial communication.

Applications of BQ2013H Battery Monitor with Internal Coulomb Counter IC

• Electric assist bicycles
• High-capacity battery packs
• Battery management systems
• Rechargeable battery monitoring.

Related Links for BQ2013H Battery Monitor with Internal Coulomb Counter IC

• Other Products from Battery & Battery Holder Category

Package Includes

• 1 X BQ2013H Battery Monitor with Internal Coulomb Counter IC
