TM1640 SMD IC

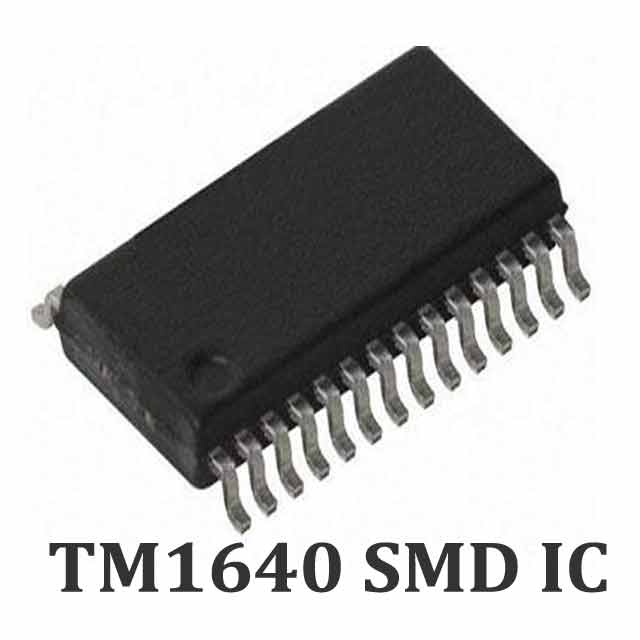

TM1640 SMD IC LED Drive Control Circuit

TM1640 SMD IC for LED display control with 8x16 output, brightness adjustment, and dual-line serial interface.

The TM1640 SMD IC LED Drive Control Circuit is designed for efficient LED display applications. This integrated circuit combines a microcontroller interface, digital latch, and high voltage drive circuit for reliable performance. It supports an 8-section by 16-bit display mode, making it ideal for devices like electronic scales and small home appliances. With a built-in brightness adjustment feature, it offers 8 levels of duty cycle control, ensuring optimal visibility in various lighting conditions.

The TM1640 SMD IC operates using a dual-line serial interface (CLK, DIN) and features a built-in RC oscillation mode at 450KHz for stable operation. This circuit also includes a power-on reset and an auto blanking circuit, enhancing reliability and ease of use. Perfect for engineers and hobbyists, this component simplifies LED display integration in your projects.

For those in India looking for high-quality electronic components, the TM1640 SMD IC is a dependable choice that meets various display requirements. Explore its capabilities and enhance your electronic designs with this efficient LED drive control circuit.

At DNA, we offer a wide range of components from top manufacturers in the Components & IC's category. Discover the TM1640 SMD IC and explore more options. Check other Components & IC's that we have in stock.

If you're searching for specific electronic parts, DNA can help. We can import components not in stock and support both retail and bulk orders. Check out related items like Development Modules, Sensors, Inductors, and more. Contact Us.

Features of TM1640 SMD IC LED Drive Control Circuit

• Power CMOS technique
• Display mode (8 sections × 16 bits)
• Brightness adjusting circuit (8 levels)
• Dual-line serial interface (CLK, DIN)
• Built-in RC oscillation (450KHz ± 5%)
• Power-on reset circuit
• Auto blanking circuit

Specification of TM1640 SMD IC LED Drive Control Circuit

• SOP28 package
• Operating voltage: 3.3V to 5V
• Maximum output current: 100mA
• Frequency: 450KHz

Applications of TM1640 SMD IC LED Drive Control Circuit

• LED display control
• Electronic scales
• Home appliances
• Digital signage
• Consumer electronics

Related Links for TM1640 SMD IC LED Drive Control Circuit

TM1640 SMD IC LED Drive Control Circuit Datasheet:

• Other Products from Components & IC's Category

Package Includes

• 1 X TM1640 SMD IC LED Drive Control Circuit
