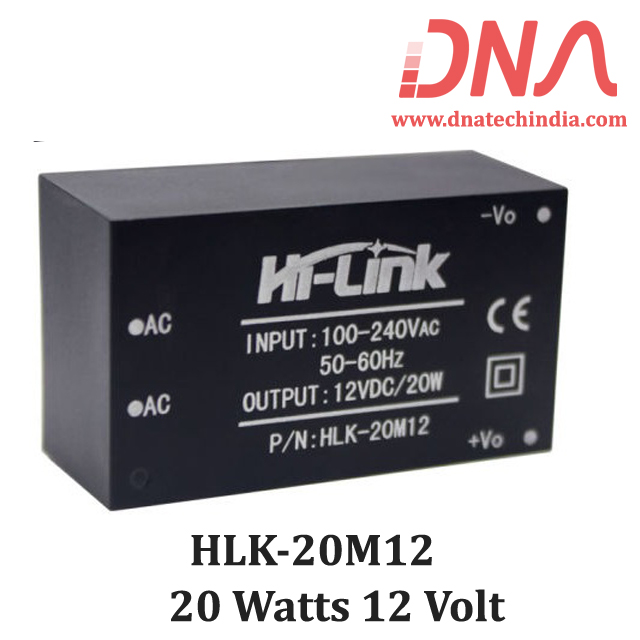

Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module

HLK-20M12 AC-DC power supply module converts AC input to 12 V DC, with 20 W output power and 1.6 A rated current.

The Hi-Link HLK-20M12 is a 20 W AC-DC power supply module that converts AC input to a 12 V DC output. Its rated output current is 1.6 A, making it a compact source for low-voltage equipment.
Input-to-output isolation helps separate the AC input from the DC output. Short-circuit protection returns the module to normal operation after the short is removed, while over-current protection helps manage excess output load. A sealed build with waterproof, heat-conducting glue supports use where protection from water and dust matters. Natural cooling keeps the design simple.
Use this 12 V power supply module in smart home and automation control systems, communication equipment and instruments. Its integrated AC-to-DC function can reduce the need for a separate power conversion stage in these devices.
DNA stocks Hi-Link modules for electronics design and repair. Explore the Hi-Link Power Supply Module range to find a suitable power option for your build. Check other Hi-Link Power Supply Module that we have in stock
If you cannot find a part, contact DNA for import support. We help Indian electronics buyers with retail and bulk orders. You can also ask about Resistors, Sensor Modules, Hongfa Relays, Nextion Displays, LCDs and MOSFETs. Contact Us

Features of Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module

  • Input-to-output isolation
  • Short-circuit protection with automatic return to normal operation
  • Output over-current protection
  • Sealed construction with waterproof, heat-conducting glue
  • Natural cooling
  • Low no-load power loss

Specifications of Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module

  • Input voltage range: 85–264 V AC or 70–350 V DC
  • Rated output voltage: 12.0 V DC (±0.1 V at no load)
  • Rated output current: 1600 mA
  • Output power: 20 W
  • Operating temperature: −25 to +60 °C
  • Dimensions: 56 × 32 × 22.5 mm (±8% dimensional and pin-spacing tolerance)

Applications of Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module

  • Smart home
  • Automation control
  • Communication equipment
  • Instruments

Related Links for Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module

Package Includes

  • 1 X Hi-Link HLK-20M12 20 W 12 V AC-DC Power Supply Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
