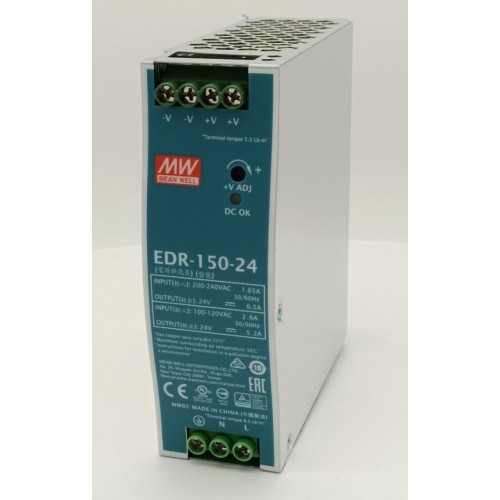

Product Images are shown for illustrative purposes only and may differ from actual product.

Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

Name: Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply
Brand: Meanwell
SKU: DAE862
Price: 2787.75 INR
Availability: OutOfStock
Rating: 5 (1 reviews)

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-24
Brand: Meanwell
SKU: 7576 | DAE862

Rs. 2,787.75 (inc GST)
Rs.2,362.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

EDR-150-24 is a 24 V DC single-output DIN-rail power supply, rated at 6.5 A and 156 W with 230 VAC input, with AC/DC input support.

Mean Well EDR-150-24 is a single-output DIN-rail power supply that converts AC or DC input to a 24 V DC output. It can deliver up to 156 W with a 230 VAC input, making it suited to control panels that need power for connected equipment.

Its 40 mm-wide metal housing helps save cabinet space and supports heat transfer. Free-air convection cooling avoids the need for a fan. Short-circuit, overload, overvoltage and overtemperature protection help guard the supply and connected loads. Overload limiting uses constant current and recovers once the fault clears.

Mount the unit on a TS-35/7.5 or TS-35/15 rail in industrial control systems, factory automation, semiconductor fabrication equipment or electro-mechanical apparatus. The 24 V DIN-rail power supply combines AC/DC input operation with fan-free convection cooling and built-in protection for panel power needs.

DNA offers Mean Well power supplies for industrial and control applications. Explore our Meanwell SMPS range to find a suitable unit for your setup. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. Ask us about development boards, Analog IC, IGBT, DC to DC Converter Module, programmers and sensor modules. Contact Us

Features of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

Universal AC input with DC input support
Constant-current overload limiting with automatic recovery after the fault clears
Short-circuit, overvoltage and overtemperature protection
Free-air convection cooling
Metal housing
Mounts on TS-35/7.5 or TS-35/15 DIN rail

Specifications of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

DC output voltage: 24 V
Rated output current: 6.5 A at 230 VAC
Rated output power: 156 W at 230 VAC
Input voltage range: 90–264 VAC
Output voltage adjustment range: 24–28 V
Typical efficiency: 87%
Operating temperature: −20 to +60 °C
Dimensions (W × H × D): 40 × 125.2 × 113.5 mm

Applications of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

Industrial control systems
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Package Includes

1 X Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
