Product Images are shown for illustrative purposes only and may differ from actual product.

Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-19

  • Brand: Meanwell
  • SKU: 2504 | DAC668

Availability: NotInStock priceValidUntil: 2026-12-19

  • Rs. 2,002.08 (inc GST)
    Rs.1,696.68 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

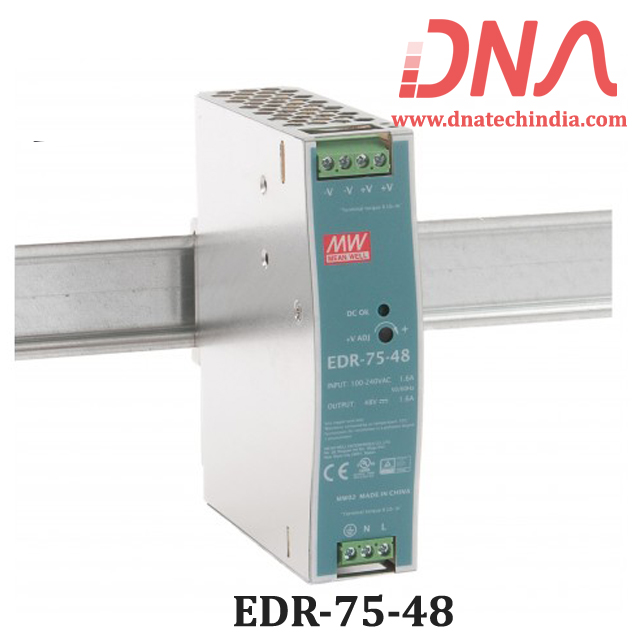

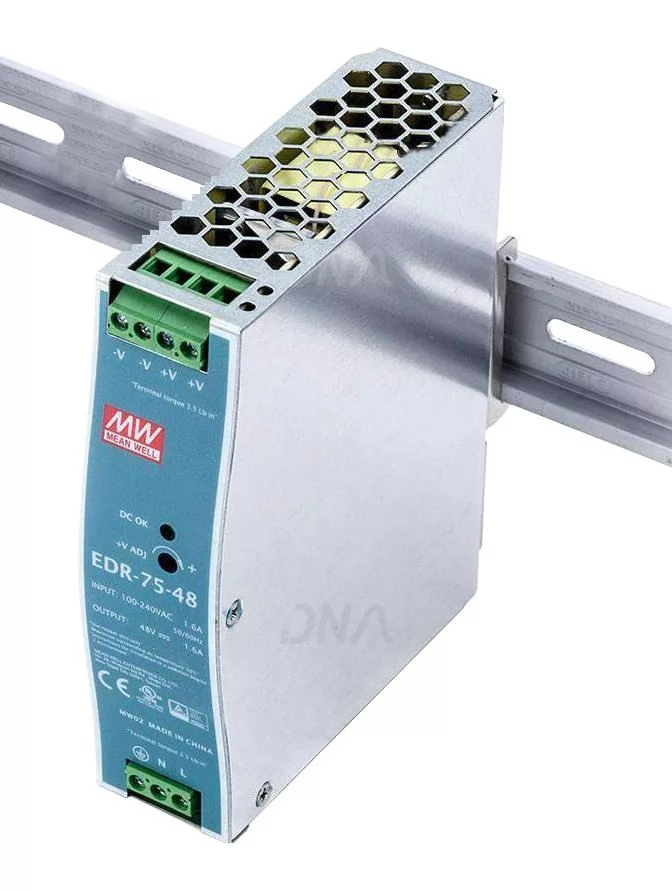

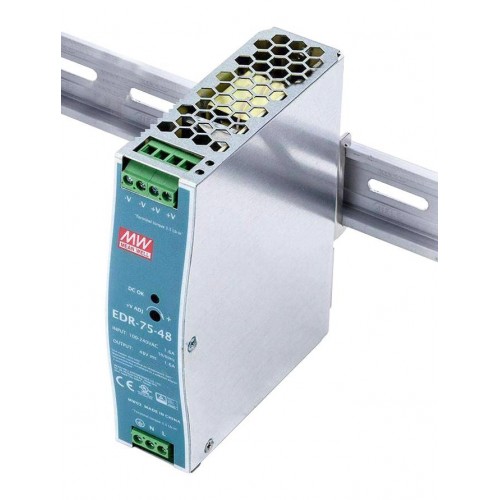

Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

Mean Well EDR-75-48 DIN-rail power supply with 48 V DC output, 1.6 A rated current and 76.8 W rated power.

The Mean Well EDR-75-48 is a single-output DIN-rail switching power supply for industrial equipment. It converts AC input from 90 to 264 V into a regulated 48 V DC output, with a rated current of 1.6 A.
Its metal case mounts on TS-35/7.5 or TS-35/15 rails. Free-air convection cooling supports operation without forced airflow. Overload, overvoltage, short-circuit and overtemperature protection help manage common fault conditions, while the DC OK indicator shows output status.
Use this 48 V industrial power supply in control systems, factory automation, semiconductor fabrication equipment and electro-mechanical apparatus. Its DIN-rail format helps fit power conversion into industrial equipment layouts.
DNA offers Mean Well power supplies for electronics buyers who need parts for industrial systems and projects. Browse our Meanwell SMPS range to find a suitable supply for your setup. Check other Meanwell SMPS that we have in stock
If you cannot find the part you need, contact DNA for import support. We serve Indian electronics buyers with both retail and bulk order support. Ask us about related parts such as relays, MOSFETs, LCDs, diodes and sensors. Contact Us

Features of Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

  • Single-output power conversion for industrial equipment
  • DIN-rail mounting for TS-35/7.5 or TS-35/15 rails
  • Free-air convection cooling
  • Protection against overload, overvoltage, short circuit and overtemperature
  • DC OK indicator for output status

Specifications of Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

  • DC output voltage: 48 V
  • Rated output current: 1.6 A
  • Rated output power: 76.8 W
  • Input voltage range: 90–264 VAC or 127–370 VDC (for DC input, connect AC/L to positive and AC/N to negative)
  • Typical efficiency: 88.5%
  • Output voltage adjustment range: 48–55 V
  • Operating temperature: −20 to +60 °C
  • Dimensions (W × H × D): 32 × 125.2 × 102 mm

Applications of Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

  • Industrial control systems
  • Semiconductor fabrication equipment
  • Factory automation
  • Electro-mechanical apparatus

Related Links for Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply

Package Includes

  • 1 X Mean Well EDR-75-48 48 V DIN-Rail Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
