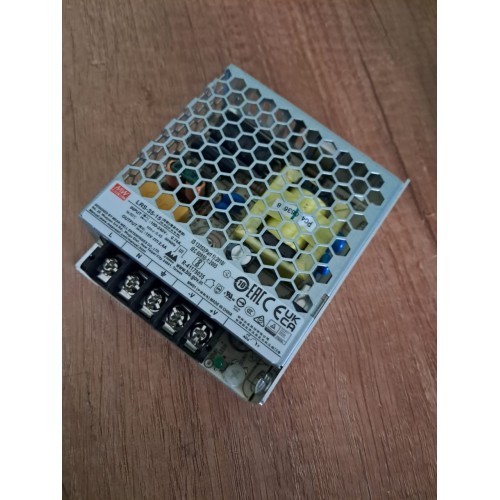

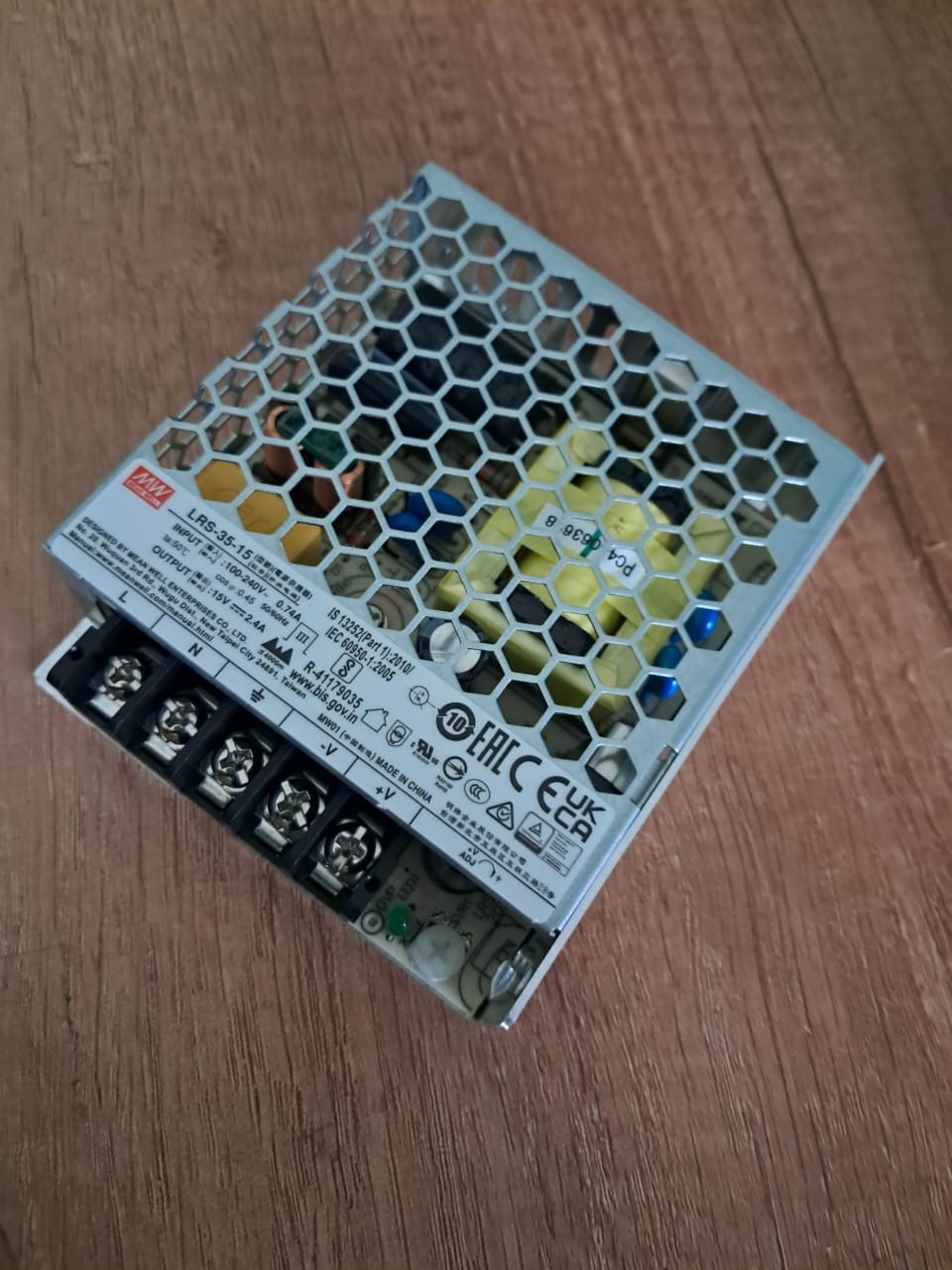

Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

Mean Well LRS-35-15 enclosed switching power supply with 15 V DC output, 2.4 A rated current and 36 W rated power.

The Mean Well LRS-35-15 is an enclosed switching power supply that converts AC or DC input to a regulated 15 V DC output. It delivers up to 2.4 A, with 36 W rated output, for equipment that needs a stable DC supply.

Its 30 mm low-profile metal case suits installations with limited space. Free-air convection cooling avoids the need for a fan, while short-circuit, overload and overvoltage protection help guard the supply during common faults. A power-on LED shows its status. This 15 V DC power supply is suited to industrial control systems, automation machinery, electronic instruments and household appliances.

Shop Meanwell SMPS at DNA, including this Mean Well supply for 15 V power needs. Browse the range to find a unit for your design or replacement requirement. Check other Meanwell SMPS that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We offer import support and retail or bulk support. Ask us about related items such as connectors, sensor modules and HMI displays. Contact Us

Features of Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

• Enclosed metal mesh case
• Single regulated DC output
• Free-air convection cooling with no fan
• Built-in short-circuit, overload and overvoltage protection
• Power-on LED indicator
• Low-profile design for space-conscious installation

Specifications of Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

• DC output voltage: 15 V
• Rated output current: 2.4 A
• Rated output power: 36 W
• Input voltage: 85–264 VAC or 120–373 VDC
• Output voltage adjustment range: 13.5–18 V
• Output voltage tolerance: ±1.0% (includes setup, line and load regulation)
• Operating temperature: -30 to +70 °C (output derating applies at elevated temperatures)
• Dimensions: 99 × 82 × 30 mm (L × W × H)

Applications of Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

• Industrial automation machinery
• Industrial control systems
• Electronic instruments and equipment
• Household appliances

Related Links for Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply

• Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well LRS-35-15 15 V, 2.4 A Enclosed Switching Power Supply
