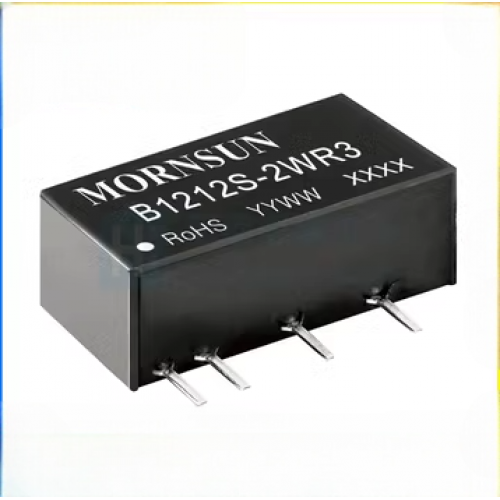

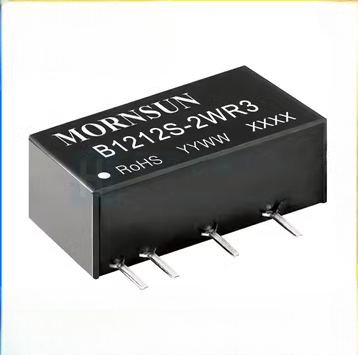

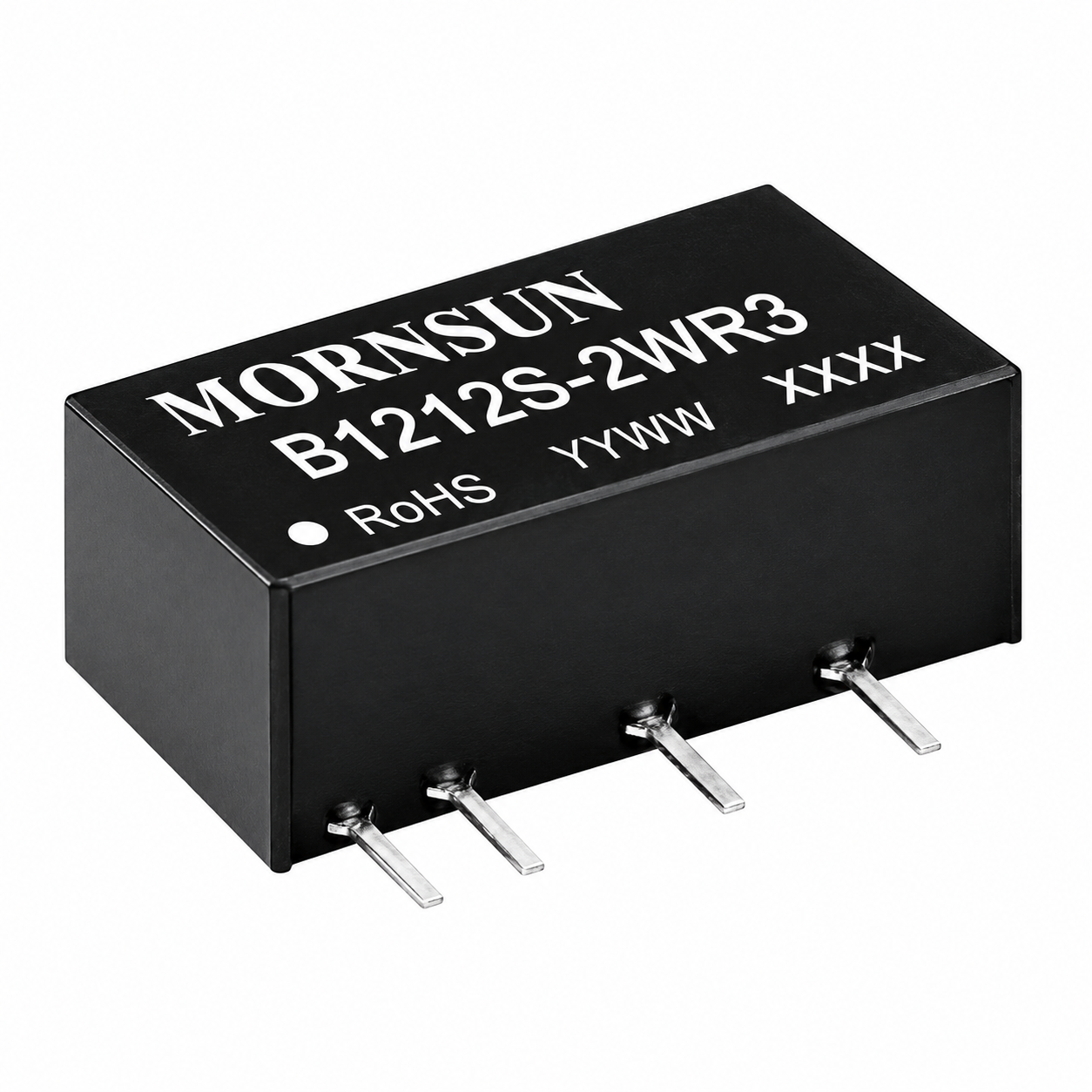

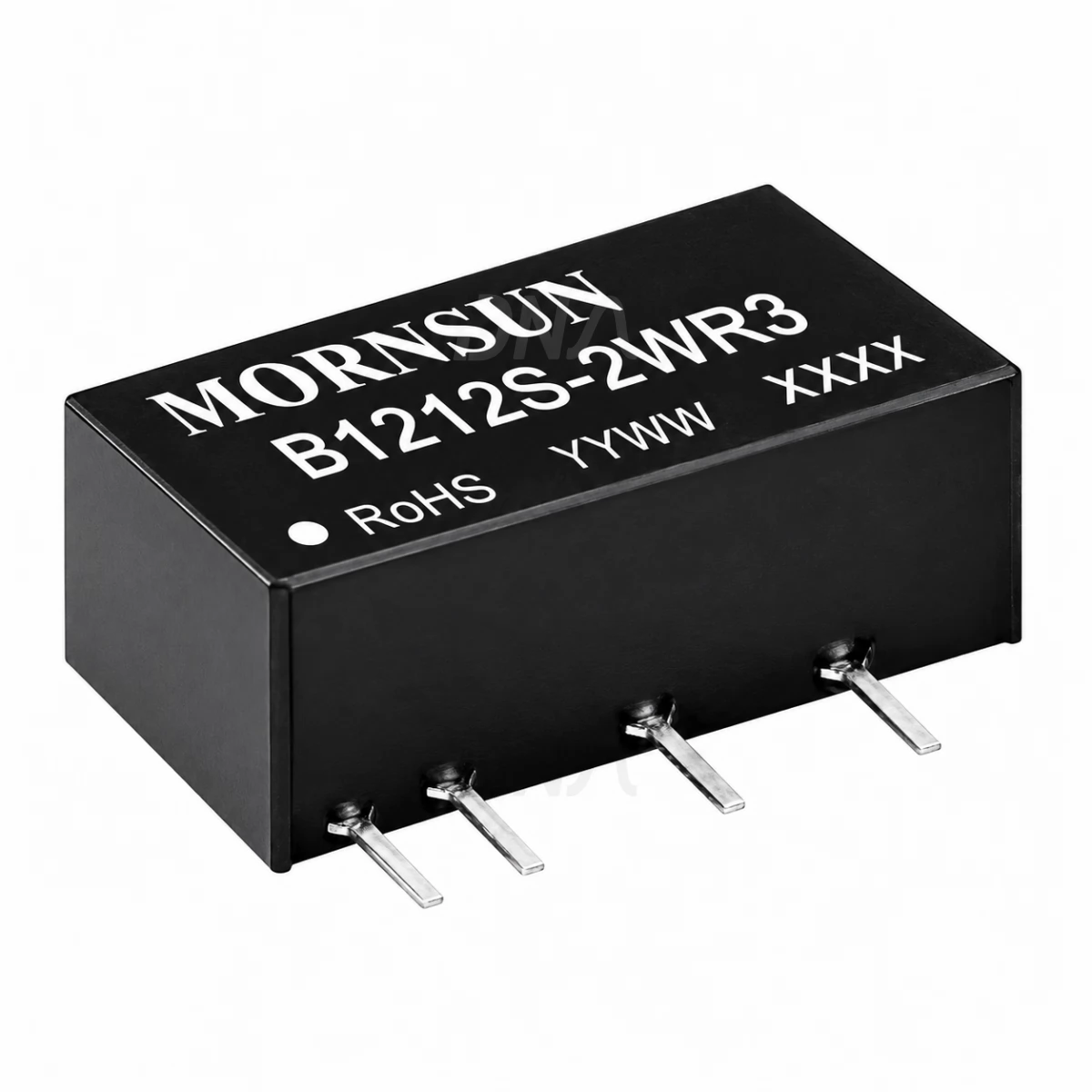

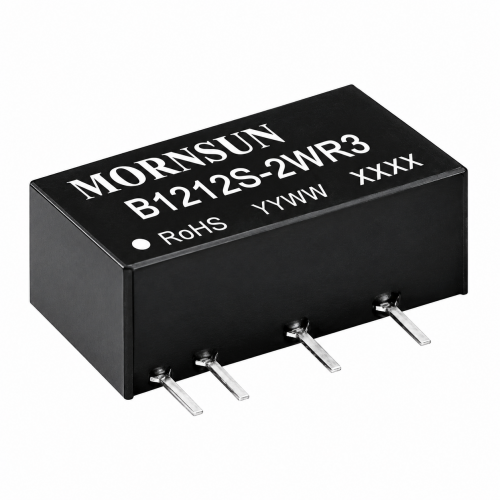

Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

  • Stock: 100

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Mornsun
  • SKU: 6065 | DAG894

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 234.53 (inc GST)
    Rs.198.75 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

Mornsun B1212S-2WR3 isolated DC-DC converter with 10.8–13.2 VDC input, 12 VDC output and 2 W power.

The Mornsun B1212S-2WR3 is an isolated DC-DC converter that converts a nominal 12 VDC input to a single 12 VDC output. It delivers up to 2 W and has an unregulated output, so it suits designs that do not need tight output regulation.
Input-to-output isolation helps separate the input and output sides of a power system. Continuous, self-recovering short-circuit protection helps the converter resume operation after a short circuit clears. Free-air convection cooling supports use without forced airflow.
Use this 12 V DC-DC converter module in distributed power supply systems that need an isolated voltage and have an input variation of 10% or less. Its single-output design provides a simple way to add an isolated power rail.
DNA stocks Mornsun SMPS for electronics design, repair and production needs. Explore this Mornsun converter and other power supply options for your projects. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA for import support. We support retail and bulk orders for DC to DC Converter Modules, Connectors, Development Modules, Programmers, HMI Displays and SMPS. Contact Us

Features of Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

  • Input-to-output isolation
  • Continuous, self-recovering short-circuit protection
  • Fixed-input, single-output conversion
  • Free-air convection cooling

Specifications of Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

  • Input voltage range: 10.8–13.2 VDC
  • Output voltage: 12 VDC
  • Output current: 167 mA maximum
  • Rated power: 2 W
  • Full-load efficiency: 80% minimum, 82% typical
  • Input-to-output isolation voltage: 1500 VDC minimum, 1-minute electric-strength test
  • Operating temperature: -40°C to +105°C, with derating from 85°C
  • Dimensions: 19.65 × 7.05 × 10.16 mm

Applications of Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

  • Distributed power supply systems that require an isolated voltage and input variation of 10% or less

Related Links for Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module

Package Includes

  • 1 X Mornsun B1212S-2WR3 Isolated 12V DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
