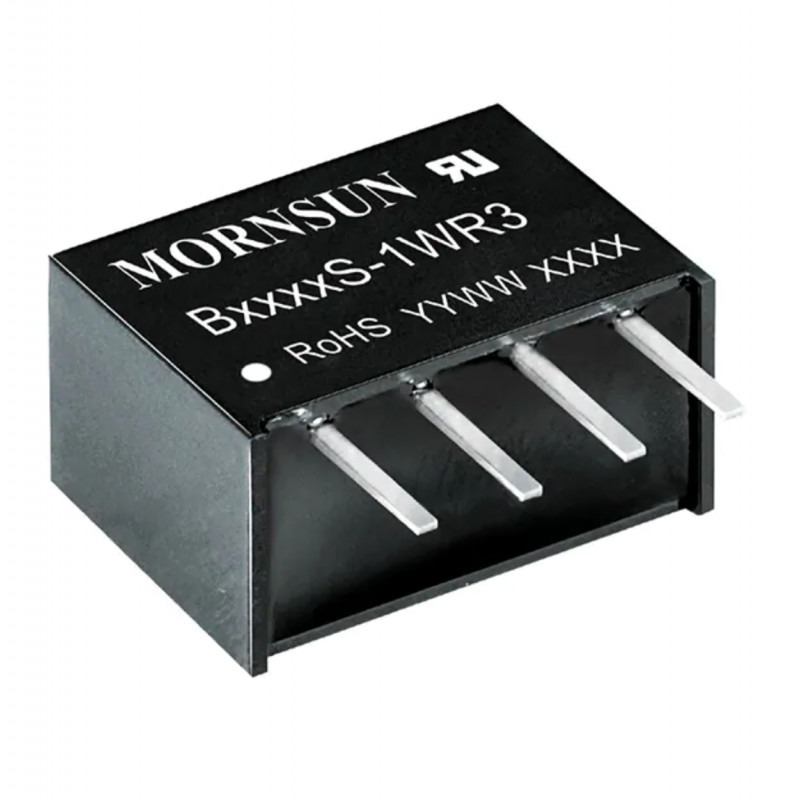

Mornsun B2405S-1WR3 1W Isolated DC-DC Converter

Mornsun B2405S-1WR3 1 W isolated DC-DC converter with 24 V nominal input, 5 V output and continuous short-circuit protection.

The Mornsun B2405S-1WR3 is a 1 W isolated DC-DC converter that changes a nominal 24 VDC input to a single unregulated 5 VDC output. It suits designs that need a separate power output for a circuit or board section.
Its input-to-output isolation helps separate power domains, while continuous, self-recovery short-circuit protection helps the module resume operation after a short is removed. The industry-standard pinout supports familiar board connections in a four-pin module layout. Use this 24 V to 5 V converter in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits.
DNA supplies Mornsun components for electronics buyers who need isolated power conversion. Browse Mornsun SMPS for this converter and related power modules. Check other Mornsun SMPS that we have in stock
Indian electronics buyers can contact DNA if they cannot find a part. We support imports and retail or bulk orders. Ask us about related items such as connectors, development modules, microcontrollers or Hongfa relays. Contact Us

Features of Mornsun B2405S-1WR3 1W Isolated DC-DC Converter

  • Input-to-output isolation
  • Continuous short-circuit protection with self-recovery
  • Industry-standard pinout
  • Single-output DC conversion
  • Four-pin module layout

Specifications of Mornsun B2405S-1WR3 1W Isolated DC-DC Converter

  • Nominal input voltage: 24 VDC
  • Input voltage range: 21.6–26.4 VDC
  • Output voltage: 5 VDC
  • Output current: 20 mA minimum, 200 mA maximum
  • Rated power: 1 W
  • Full-load efficiency: 73% minimum, 79% typical
  • Input-to-output isolation test voltage: 1,500 VDC minimum for 1 minute
  • Operating temperature: −40°C to +105°C, with derating at temperatures ≥85°C for input voltages other than 3.3 V

Applications of Mornsun B2405S-1WR3 1W Isolated DC-DC Converter

  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits
  • Data switching circuits

Related Links for Mornsun B2405S-1WR3 1W Isolated DC-DC Converter

Package Includes

  • 1 X Mornsun B2405S-1WR3 1W Isolated DC-DC Converter
