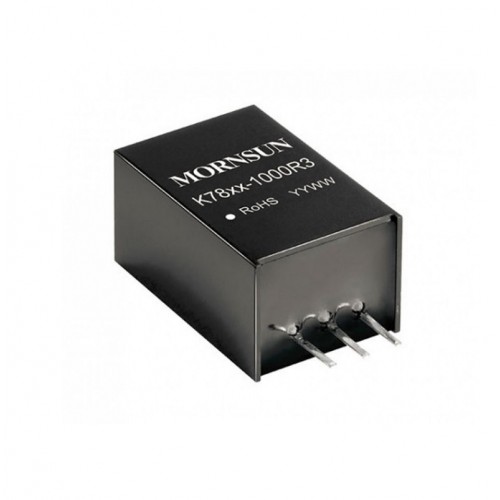

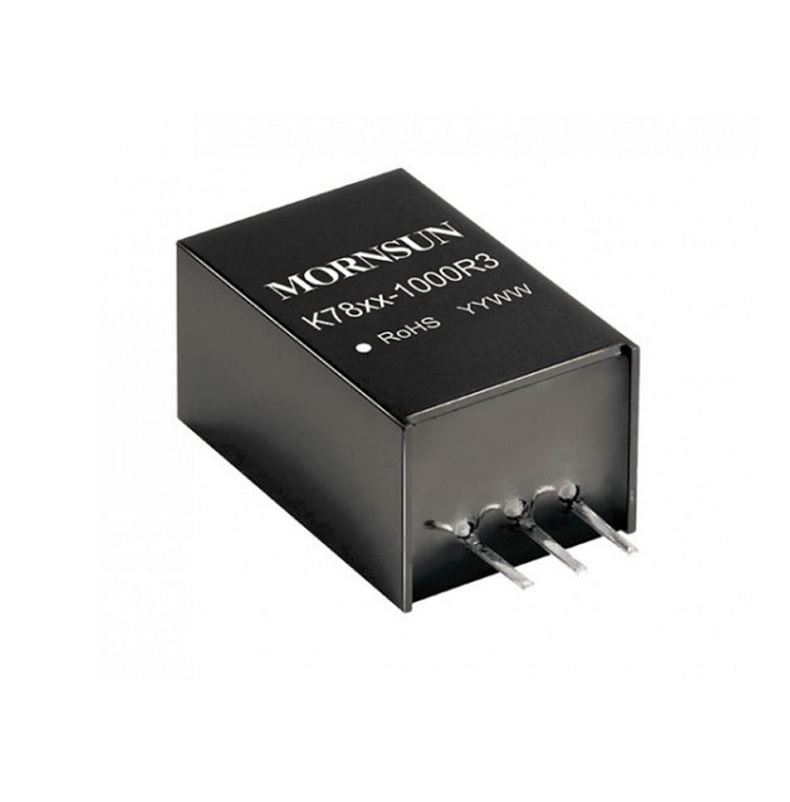

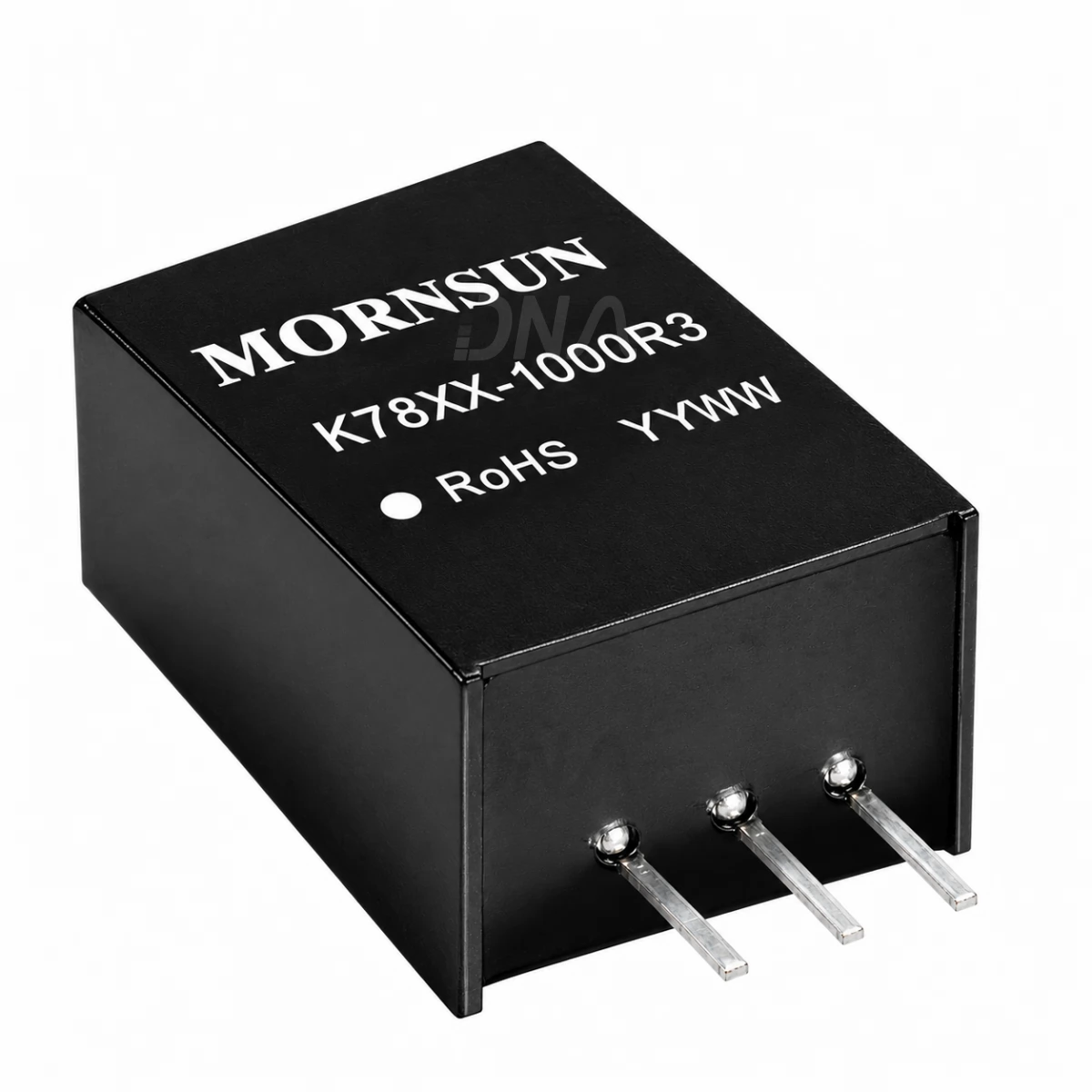

MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-16

  • Brand: Mornsun
  • SKU: 7142 | DAH050

Availability: NotInStock priceValidUntil: 2026-12-16

  • Rs. 215.94 (inc GST)
    Rs.183.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

MORNSUN K7812-1000R3 regulated DC/DC converter with +12 V output, 16–36 VDC input range and up to 1000 mA output current.

The MORNSUN K7812-1000R3 is a regulated 12 V DC/DC converter for systems that need a positive supply rail from a 24 V nominal DC input. It accepts 16–36 VDC and provides up to 1000 mA for local power conversion in electronic equipment.
Its switching design reaches 96% full-load efficiency at minimum input and 93% at maximum input. The three-pin module is pin compatible with the LM78xx series, which can ease board updates where the layout matches. If an output short occurs, self-recovering short-circuit protection acts continuously and resumes operation after the fault clears. The converter is non-isolated, so input and output do not have galvanic isolation.
Use it in industrial control and instrumentation equipment, as well as electric power applications that need a regulated positive supply.
DNA supplies Mornsun SMPS for design, repair and production needs in India. Browse this Mornsun range to compare power conversion options and find a part that fits your project. Check other Mornsun SMPS that we have in stock
For Indian electronics buyers, DNA can help locate parts that are not listed and arrange import support. We support retail and bulk orders, with related options such as power supplies, development boards, sensors and HMI displays. Contact Us

Features of MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

  • Regulated switching conversion for a positive output
  • Three-pin module format for board-level integration
  • Pin compatible with the LM78xx series
  • Continuous short-circuit protection with self-recovery
  • High full-load efficiency across the input range

Specifications of MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

  • Input voltage: 24 VDC nominal, 16–36 VDC range
  • Output voltage: +12 VDC
  • Maximum output current: 1000 mA
  • Full-load efficiency: 96% at minimum input voltage, 93% at maximum input voltage
  • Operating temperature: -40°C to +85°C, with derating from 71°C
  • Output voltage accuracy: ±2% typical, ±3% maximum (full load, 16–36 V input)
  • Dimensions: 11.50 × 9.00 × 17.50 mm (standard version)
  • Isolation: Non-isolated

Applications of MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

  • Industrial control
  • Instrumentation
  • Electric power

Related Links for MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter

Package Includes

  • 1 X MORNSUN K7812-1000R3 Non-Isolated DC/DC Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
