Product Images are shown for illustrative purposes only and may differ from actual product.

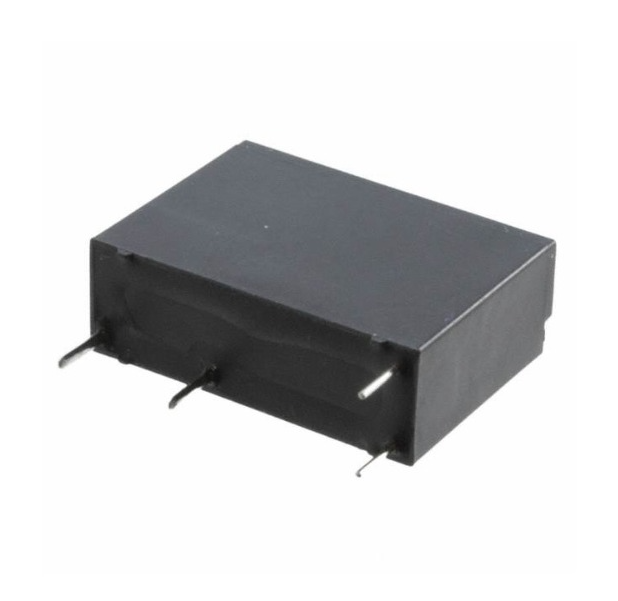

ALDP105W PANASONIC 5 Volt Relay

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Panasonic
  • SKU: 10210 | DAI709

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 64.00 (inc GST)
    Rs.54.24 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PANASONIC ALDP105W 5V Power Relay

ALDP105W: 5A 277VAC Power Relay with low power coil and high insulation resistance.

The PANASONIC ALDP105W 5V Power Relay is a compact and efficient device designed for various applications. This relay features a single-pole normally open (1 Form A) configuration, making it suitable for switching up to 5A at 277VAC or 3A at 30VDC. With low power coil consumption of just 200 mW, it ensures energy efficiency while maintaining high insulation performance. The relay's strong shock resistance and robust construction enhance its reliability in consumer appliances, industrial control systems, and lighting applications.
Engineered for durability, the PANASONIC ALDP105W boasts a mechanical life of over 5 million operations. Its dielectric strength of 4,000 Vrms between contact and coil guarantees safety in demanding environments. This relay is UL, VDE, and CQC certified, ensuring compliance with international safety standards. Ideal for building automation and test devices, the ALDP105W is a versatile choice for electronics in India.
With dimensions of 6.9 × 20.2 × 14.9 mm and a weight of approximately 4g, the PANASONIC ALDP105W 5V Power Relay fits seamlessly into various systems. Its wide operating temperature range of -40°C to +85°C makes it suitable for diverse applications, ensuring performance in both extreme and standard conditions.
Discover the reliability of PANASONIC products at DNA, your trusted supplier for Relay, Relay Socket & SSR. Explore our extensive range and find the right solutions for your needs. Check other Relay, Relay Socket & SSR that we have in stock.
At DNA, we cater to the needs of Indian electronics buyers. If you're looking for specific components like MOSFETs, Sensors, or Development Modules, we can help. We also support bulk orders and can import items not readily available. Contact Us.

Features of PANASONIC ALDP105W 5V Power Relay

  • Compact 1 Form A contact configuration
  • Rated switching capacity: 5A at 277VAC / 3A at 30VDC
  • Coil power consumption as low as 200 mW
  • High insulation resistance: 1000 MΩ at 500 VDC
  • Dielectric strength: 4,000 Vrms
  • Mechanical life: ≥ 5 million operations

Specification of PANASONIC ALDP105W 5V Power Relay

  • Contact arrangement: 1 Form A (SPST-NO)
  • Contact rating: 5A 277VAC / 3A 30VDC
  • Coil voltage: 5V DC
  • Coil resistance: 720 Ω
  • Operate time: ≤10 ms
  • Release time: ≤10 ms
  • Operating temperature: -40°C to +85°C

Applications of PANASONIC ALDP105W 5V Power Relay

  • Consumer appliances
  • Industrial control systems
  • Lighting equipment
  • Test and measurement devices
  • Building automation

Related Links for PANASONIC ALDP105W 5V Power Relay

    ALDP105W Panasonic Relay Datasheet:

Package Includes

  • 1 X PANASONIC ALDP105W 5V Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
