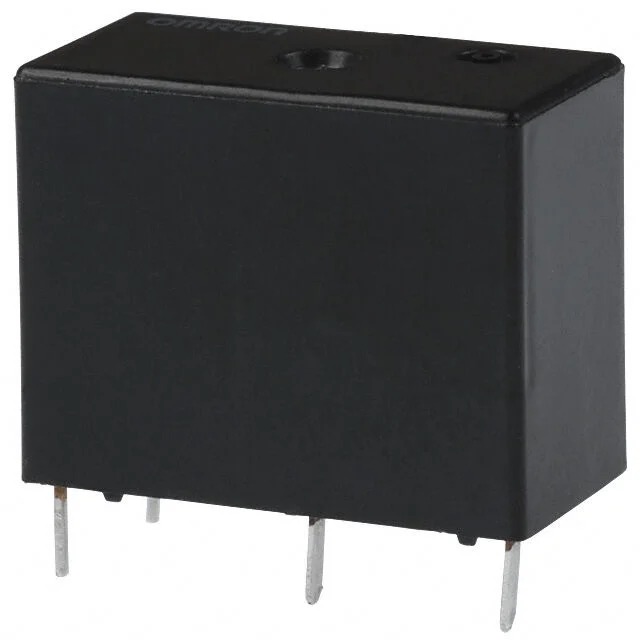

Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Omron
  • SKU: 11077 | DAK065

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 189.67 (inc GST)
    Rs.160.74 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

Omron G5Q-1A4-EU DC5 SPST-NO PCB power relay with a 5 VDC coil, up to 10 A AC switching current and a sealed enclosure.

The Omron G5Q-1A4-EU DC5 is a PCB power relay with a 5 VDC coil and single-pole, single-throw normally open contacts. Its NO contacts can switch resistive loads up to 10 A at 250 VAC, making it a fit for control equipment outputs.
A sealed enclosure and PCB terminals support board-level installation. The coil uses about 200 mW, and its coil has no polarity, which gives designers more flexibility when wiring the relay. The Class F coil insulation system and high-capacity design support its role in switching circuits.
Use this SPST-NO relay in output stages of control equipment that need a normally open switching path. Its compact body measures up to 20.3 × 10.3 × 15.8 mm, helping it fit on a PCB.
DNA stocks Omron parts for electronics buyers and engineers. Explore our Relay, Relay Socket & SSR range for relay and switching needs across your projects. Check other Relay, Relay Socket & SSR that we have in stock
If you cannot find the part you need, contact DNA for import support and retail or bulk orders in India. Ask us about related items such as SMPS, Microcontroller, Inductor, Programmer, Hongfa Relay and Sensor. Contact Us

Features of Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

  • Sealed enclosure
  • PCB terminals for board installation
  • SPST-NO contact arrangement
  • Coil has no polarity
  • Class F coil insulation system

Specifications of Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

  • Rated coil voltage: 5 VDC
  • Rated resistive contact load: 10 A at 250 VAC (NO contacts)
  • Maximum switching current: 10 A AC and 5 A DC (NO contacts)
  • Maximum switching voltage: 277 VAC and 30 VDC
  • Approximate coil power: 200 mW
  • Ambient operating temperature: -40°C to 85°C (no icing or condensation)
  • Maximum dimensions: 20.3 × 10.3 × 15.8 mm
  • Impulse withstand voltage between coil and contacts: 8 kV (1.2 × 50 μs)

Applications of Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

  • Output applications of control equipment

Related Links for Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay

Package Includes

  • 1 X Omron G5Q-1A4-EU DC5 5 VDC SPST-NO PCB Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
