  • WSH237 XPAN

Product Images are shown for illustrative purposes only and may differ from actual product.

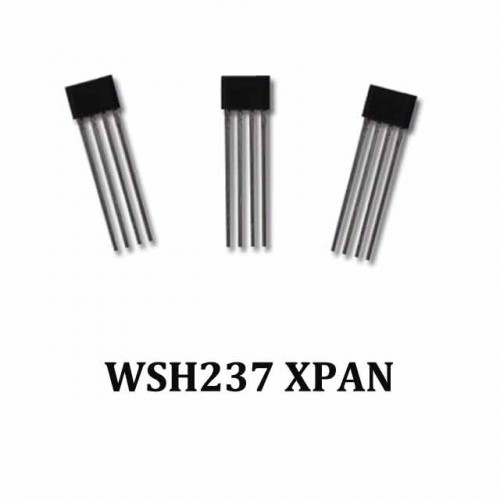

WSH237 XPAN

  • Stock: 22
  • SKU: 3242 | DAD335
  • Rs. 70.80 (inc GST)
    Rs.60.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

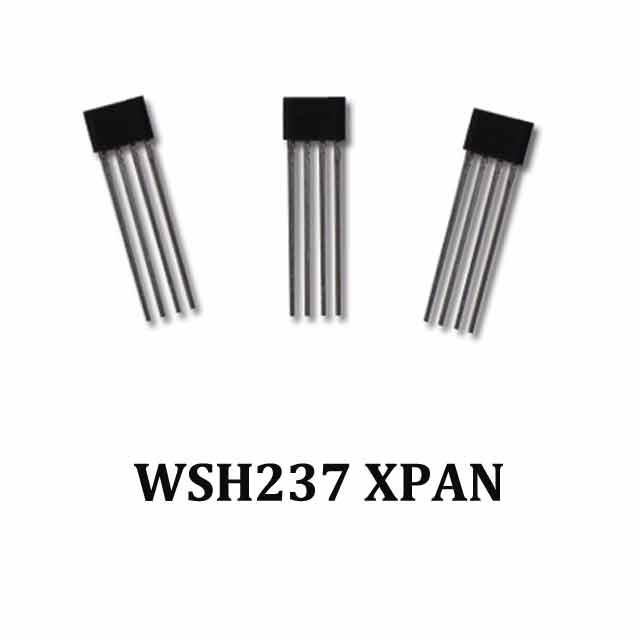

WSH237 XPAN

WSH237 XPAN

The WSH237 is an adjustable Hall Effect Switch with magnetic field measure function for on-site calibration. The Hall sensing switching point of the magnetic field isad justable through the input reference voltage of Vset pin. The output voltage (Vout)turns to high voltage level when the internal voltage (VB) is greater than the reference voltage (Vset). In contrast, Vout turns to low voltage level when VB is smaller than Vset. This function allows WSH237 to be applied in precision positioning, motion detection,and over-current detection, and etc.

 WSH237 also can accurately track extremely small change in magnetic flux density by converting it proportionally into a analog voltage signal. The temperature-dependent bias in WSH237 increases the supply voltage of the hall platesand adjusts the switching points to the decreasing induction of magnets at high temperatures. Therefore, WSH237 has wide operation temperature range which is from-40℃ to+125℃.

DNA solutions,Nashik has various types of Power SENSORS's. Check out our complete collection of  POWER  SENSORS'S.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of WSH237 XPAN

  • Adjustable Hall Effect Switch with magnetic field measure for on-site calibration
  • Response time 500 ns
  • High resolution ±0.5 Gauss
  • Adjustable magnitude sensing range:±500 Gauss on 5V supplied voltage; ±1000 Gauss on 12V supplied voltage
  • Output "High" when VB > Vset; Output "Low" when VB < Vset
  • Wide operating voltage range 3 V ~ 12 V
  • Almost zero hysteresis
  • 23 kHz bandwidth

Related Links

WSH237 XPAN Datasheet.

Package Includes

1 x WSH237 XPAN

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
