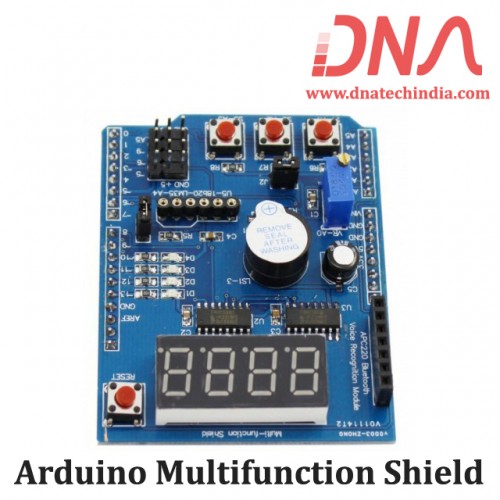

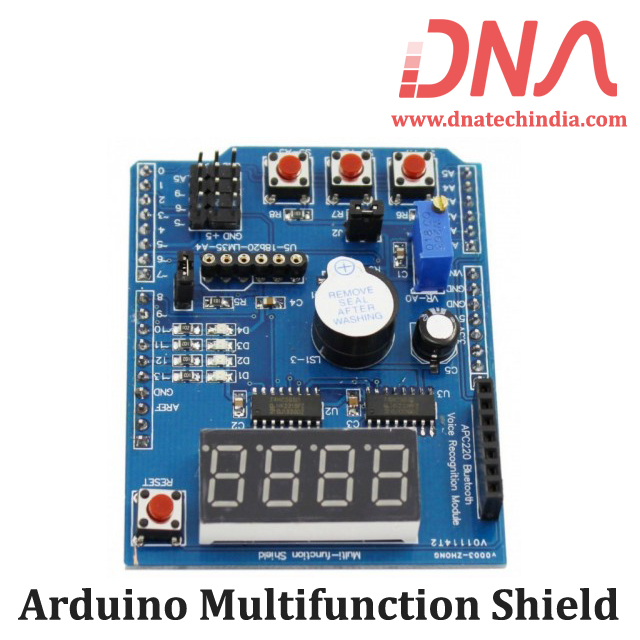

ARDUINO MULTI FUNCTION SHIELD

Want to get started with Arduino? Well ten this multi-function shield is perfect for you if you want to try out different interfacing with Arduino.

The multi-function Learning shield for Arduino has many of features which makes it ideal for beginners who just want to experiment and learn, or just as a general purpose board for more advanced uses. It has provisions for ADC experiments, General Purpose I/O experiments, Segment Displays, Communications and more.

We have Various sizes of Arduino Sheild. Check out our complete collection of Arduino Sheild.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Shield

  • Plug and play with Arduino Uno or Mega

  • 4 digit 7-segment LED display module

  • 4 x surface mount LEDs

  • 1 x 10K adjustable precision potentiometer for trying ADC experiments.

  • 3 x Independent push buttons

  • Piezo buzzer

  • DS18B20 temperature sensor interface

  • LM35 temperature sensor interface

  • Infrared receiver interface

  • Serial interface header for convenient connection to serial modules such as Bluetooth, wireless interface, voice module, a voice recognition module etc

Pin Layout of Multi-functional Board

  • 4 Red LEDs - Pin 10,11,12,13

  • 3 Buttons+Reset button - Pin A1,A2,A3

  • Potentiometer(10Kohm) - Pin A0

  • 4 digit seven segment led driven by 74HC595 - Latch 4,Clock 7,Data 8

  • Buzzer-3(digital on/off)

  • Socket for infrared receiver(remote control) - Pin 2

  • Socket for temperature sensor LM35 or DS18B20 - Pin A4

  • Header for APC220 shield - Gnd,5V,0,1(rx/tx)

  • Free pins(PWM) - 5,6,9,A5
