LCD Keypad Shield for Arduino

  • Stock: Out Of Stock
  • SKU: 2030 | DAB358
  • Rs. 237.89 (inc GST)
    Rs.201.60 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

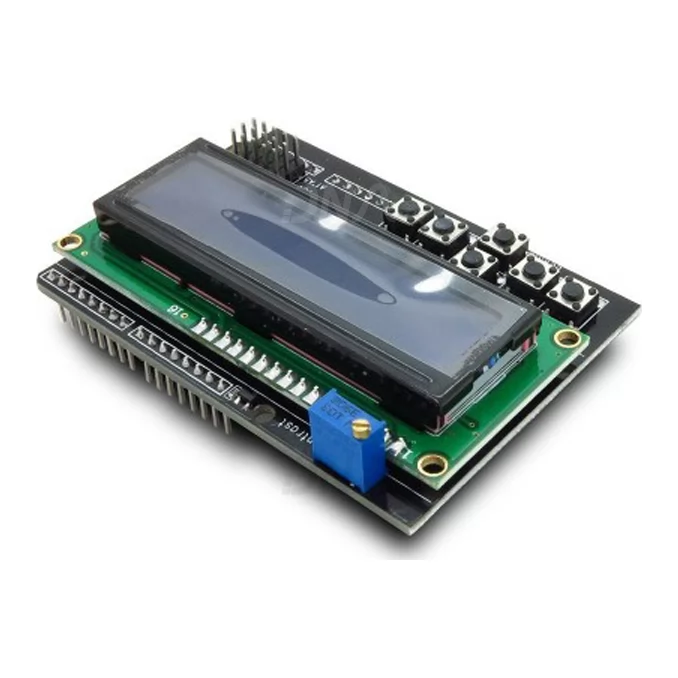

LCD Keypad Shield for Arduino

2x16 LCD display and 6 momentary push buttons

This is a very popular LCD Keypad shield for Arduino and other variants. It includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Just one Analog Pin 0 is used to read the five pushbuttons. The LCD shield supports contrast adjustment and back-lit on/off functions. It also exposes five analog pins for easy analog sensor plugging and display. An on board power LED is also provided.

This design is great since easily lets you keep connecting sensors to the rest of the pins, and use it for monitoring or menu selection with the push buttons even for gaming. Often project applications require testing or debugging. Displaying information right away help on most occasions when a computer is not at reach. If you are planning to build something not attached to a computer and you need to check what is going on when you place it on position, this addition will prove very valuable to make sure the program is running well.

The used LCD pins are not exposed on top side of the board leaving only the unused ones. This way, conflict with LCD pins on top of the board will not happen anymore.

We have Various sizes of Arduino Sheild. Check out our complete collection of Arduino Sheild.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification

  • Operating Voltage:5V
  • 5 Push buttons to supply a custom menu control panel
  • RST button for resetting arduino program
  • Integrate a potentiometer for adjusting the backlight
  • Pin used:

                            D4-D7    -> LCD Data transmission
                            D8       -> Register Select
                            D10      -> Backlight control
                            D9       -> Enable pin

  • Expanded available I/O pins
  • Dimension: 80 x 58 mm
