B1205S-1WR3 Mornsun Isolated DC - DC Converter

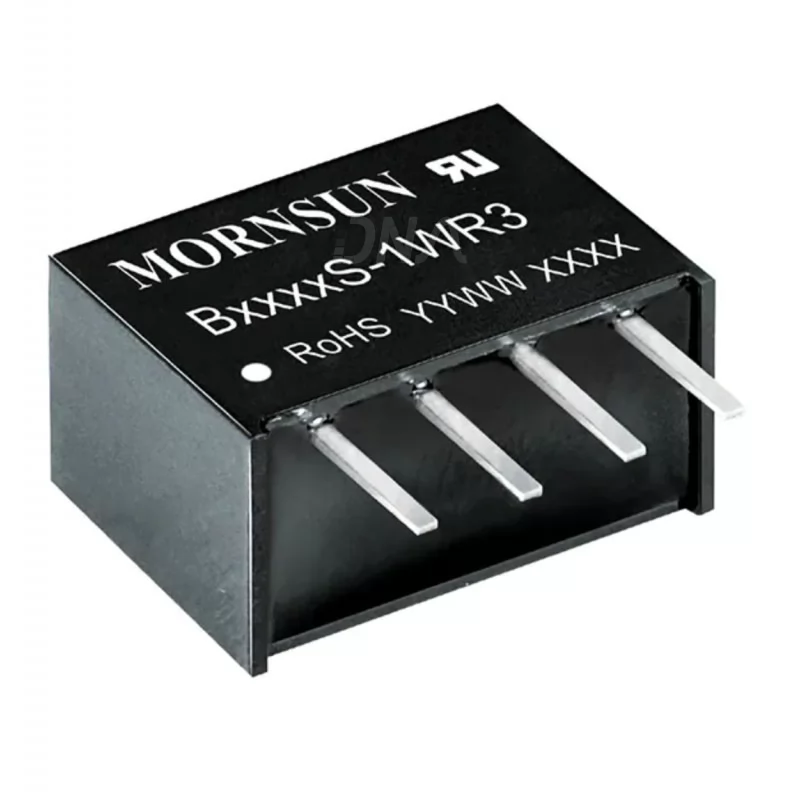

Mornsun B1205S-1WR3 Isolated DC - DC Converter

B1205S-1WR3 Converter, 12V to 5V output, 1W power, compact SIP package.

The Mornsun B1205S-1WR3 Isolated DC - DC Converter provides reliable voltage conversion in a compact design. This module is ideal for distributed power supply systems requiring isolation. It supports pure digital circuits and low-frequency analog circuits while ensuring high efficiency of up to 81%. With a continuous short-circuit protection feature, the B1205S-1WR3 guarantees safety and reliability in various applications.

Operating within an input voltage range of 21.6 to 26.4 VDC, the Mornsun B1205S-1WR3 delivers a stable output voltage of 5V and an output current of 200mA. The compact SIP package (11.60mm x 6.00mm x 10.16mm) makes it suitable for space-constrained designs. The operating temperature range of -40℃ to +105℃ enhances its versatility in challenging environments.

This Mornsun Isolated DC - DC Converter is perfect for applications in relay-driven circuits and data switching circuits. It meets industry standards for pin-out, making it easy to integrate into existing systems. Explore the full potential of the B1205S-1WR3 for your electronic projects.

Explore the reliability of Mornsun SMPS with DNA. We offer a wide range of Mornsun products that ensure efficient power solutions. Check other 'Mornsun SMPS' that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific parts like Microcontrollers, Analog ICs, or Power Supplies, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us.

Features of Mornsun B1205S-1WR3 Isolated DC - DC Converter

• Operating temperature range: -40℃ to +105℃
• High efficiency up to 81%
• Continuous short-circuit protection
• No-load input current as low as 8mA
• I/O Isolation Test voltage:1.5K VDC/min
• Compact SIP package

Specification of Mornsun B1205S-1WR3 Isolated DC - DC Converter

• Isolation Voltage:1.5 kVdc/min
• Input Voltage range:21.6-26.4 Vdc
• Nominal voltage:12 Vdc
• Output voltage:5V
• Output current:200mA
• Wattage:1W
• Size:11.60mm(Length) X 6.00mm(Width) X 10.16mm (Height)
• Weight:1.3gm

Applications of Mornsun B1205S-1WR3 Isolated DC - DC Converter

• Distributed power supply systems
• Pure digital circuits
• Low-frequency analog circuits
• Relay-driven circuits
• Data switching circuits

Related Links for Mornsun B1205S-1WR3 Isolated DC - DC Converter

• Other Products from Mornsun SMPS Category

Package Includes

• 1 X Mornsun B1205S-1WR3 Isolated DC - DC Converter
