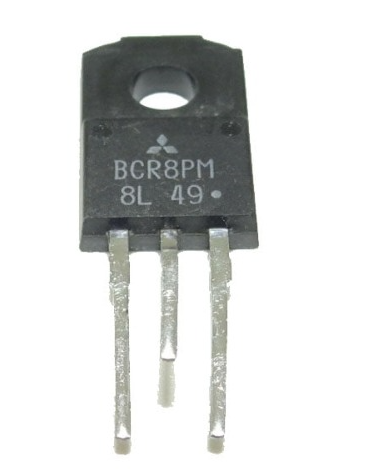

BCR8PM TRANSISTOR TO-220F (Insulated) Package

BCR8PM TRIAC Insulated Transistor for AC Switching

BCR8PM TRIAC: 8A, 600V Insulated for general-purpose AC switching and control applications.

The BCR8PM TRIAC Insulated Transistor for AC Switching is a reliable solution for controlling AC loads in various applications. With a repetitive peak off-state voltage of 600V and an RMS on-state current of 8A, it is ideal for light dimmers, motor drivers, and appliance control. Its robust surge capability and low on-state voltage enhance performance in power supplies. The BCR8PM features a TO-220F package with 2000VRMS isolation, making it suitable for demanding environments.

Designed using planar technology, the BCR8PM TRIAC operates efficiently at temperatures up to 150°C. It boasts a gate trigger current of 30mA and surge on-state current of 80A, ensuring effective switching in various applications. This component is UL recognized, ensuring safety and reliability in your projects.

The BCR8PM TRIAC serves multiple applications, including fan speed controllers, solenoid drivers, and general AC load switching. With its versatility and robust specifications, it is an essential component for any electronic system needing effective AC control.

Explore the reliability of Diodes & Transistors with BCR8PM from a trusted manufacturer. At DNA, we offer a wide range of products in this category. Check other "Diodes & Transistors" that we have in stock.

If you need specific electronic components, reach out to us. We can help you find what you need and even import parts if they are unavailable. We support both retail and bulk orders. Check our stock of related items like Hongfa Relay, Microcontroller, Programmer, Power Supply, SMPS, and HMI Display. Contact Us.

Features of BCR8PM TRIAC

• RMS on-state current: 8A
• Repetitive peak off-state voltage: 600V
• Surge on-state current: 80A
• Max on-state voltage: 1.6V
• Insulated TO-220F package with 2000VRMS isolation

Specification of BCR8PM TRIAC

• Device Type: TRIAC
• VDRM/VDSM: 600V / 720V
• IT(RMS): 8A
• ITSM: 80A
• I2t (1 cycle @60Hz): 26A2s
• VTM: 1.6V
• IFGT/IRGT (max): 30mA
• Isolation Voltage: 2000VRMS
• Operating Junction Temp.: –40 to +150°C

Applications of BCR8PM

• Light dimmers
• Fan speed controllers
• Appliance control
• Solenoid drivers
• General AC load switching

Related Links for BCR8PM TRIAC Insulated Transistor for AC Switching

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X BCR8PM TRANSISTOR TO-220F (Insulated) Package
