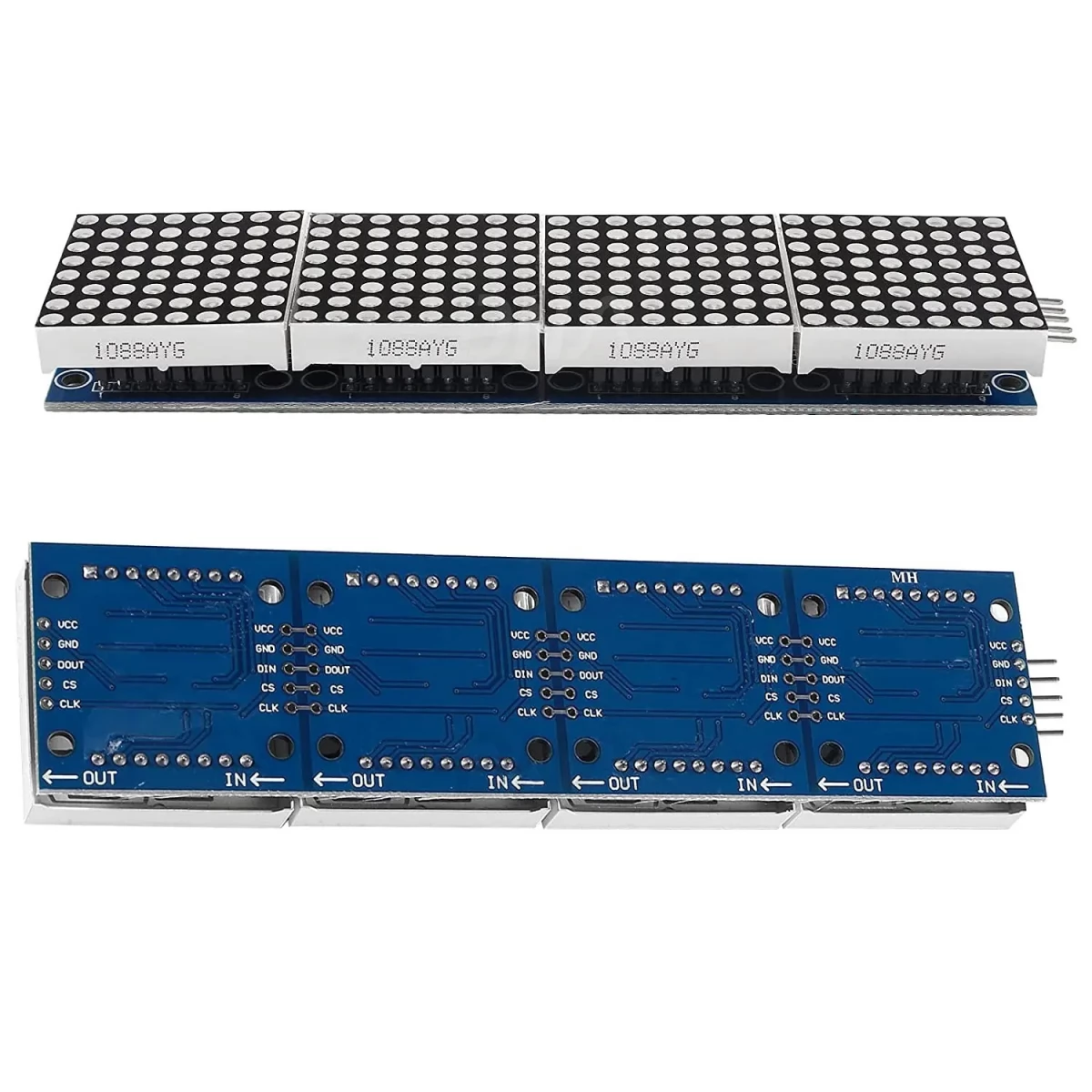

BLUE 0.8" 8X24 MATRIX MAX7219 MODULE

BLUE 0.8" 8X24 MATRIX MAX7219 MODULE

The MAX7219/MAX7221 are compact, serial input/ output common-cathode display drivers that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7221 is compatible with SPI™, QSPI™, and MICROWIRE™, and has slew-rate-limited segment drivers to reduce EMI.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

• Drive Common-Cathode LED Display

• Slew-Rate Limited Segment Drivers

• for Lower EMI (MAX7221)

• SPI, QSPI, MICROWIRE Serial Int

• 10MHz Serial Interface

• Individual LED Segment Control

• Decode/No-Decode Digit Selection

• 150μA Low-Power Shutdown (Data Retained)

• Digital and Analog Brightness Control

• Display Blanked on Power-Up

Package Includes

1 x BLUE 0.8" 8X24 MATRIX MAX7219 MODULE
