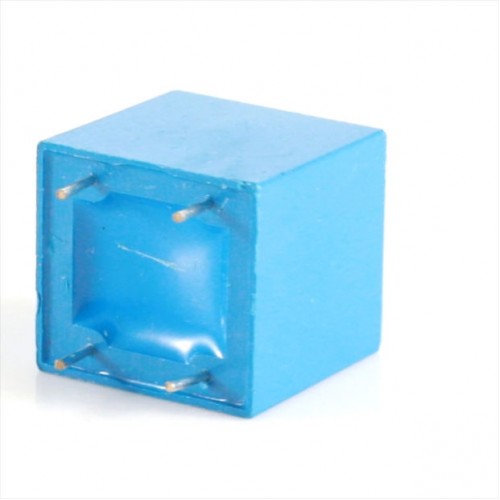

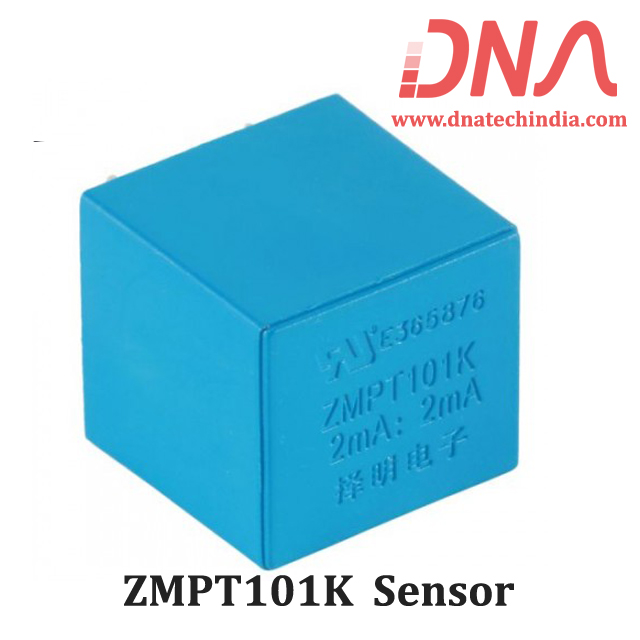

ZMPT101K Precision Phase Voltage Transformer


Write a review | 0 reviews

  • Stock: 31
  • SKU: 2572 | DAE008
  • Rs. 115.64 (inc GST)
    Rs.98.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ZMPT101K Mini Voltage Transformer

ZMPT101K 2mA/2mA Precision phase Voltage Transformer With UL Certificate For UPS

ZMPT101K is same like ZMPT101B only difference is ZMPT101K is UL certified. ZMPT101K is Ultra Micro Voltage Transformer. It is Small size with high accuracy and good consistency for voltage and power measurement. Turn ratio is 1:1 and is idea for using in UPS.

We have various types of Load Cells, Force Sensor, Flex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.


Electrical Parameters for ZMPT101K Precision Voltage Transformer

  • Basic Primary Current: 2 ma
  • Maximum Primary Current: 8 ma
  • Secondary Current: 2 ma
  • Accuracy Class: 0.2
  • Load Resistance:  0 - 400 ohm


Technical Parameters of  ZMPT101K Mini Voltage Transformer

  • Model: ZMPT101K
  • Rated input current: 2mA
  • Rated output current: 2mA
  • Turns ratio: 1000:1000
  • Phase angle error: ≤20'(input 2mA,sampling resistor 100Ω)
  • Linear range: 0~1000 Volts  0~10 mA(sampling resistor 100Ω)
  • Linearity ≤ 0.2%
  • Permissible error -0.3%≤ f ≤+0.2%(input 2mA,sampling resistor 100Ω)
  • isolation voltage 4000 Volts
  • Encapsulation Epoxy
  • Installation PCB mounting(Pin Length>3mm)
  • Operating temperature -40ºC~+85ºC
