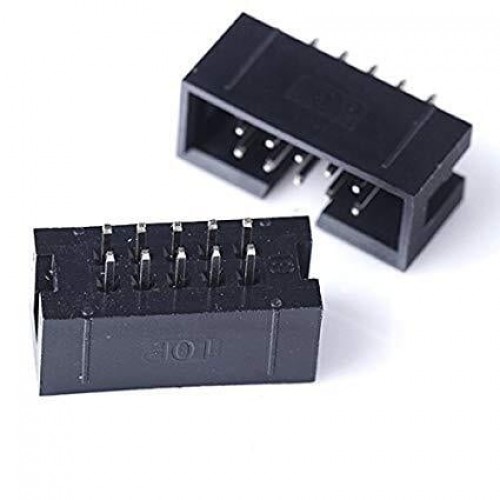

BOX HEADER 10 PIN ST

BOX HEADER 10 PIN ST Connectors

10-pin straight box header connector for reliable PCB connections. Features include a dual-row design, 2.54 mm pitch, and robust thermoplastic housing.

The BOX HEADER 10 PIN ST Connectors is a compact, dual-row male header connector designed for through-hole mounting on PCBs. This 10-pin connector ensures reliable connections in various applications, including embedded systems and industrial automation. Its boxed design provides mechanical stability and keying, making it ideal for low-profile board-to-board and cable-to-board connections.

Featuring a standard 2.54 mm pitch, the BOX HEADER 10 PIN ST Connectors is compatible with IDC ribbon cable connectors. It boasts a durable thermoplastic housing and either gold or tin-plated contacts, ensuring reliable conductivity and longevity in performance. With a current rating of 1–3 A per contact and a voltage rating of up to 250V AC/DC, this connector is suitable for various electronic applications.

Applications of the BOX HEADER 10 PIN ST Connectors include industrial automation systems, consumer electronics, and robotics. This connector is a reliable choice for test and development boards, ensuring stable connections in all environments.

Explore a wide range of high-quality Connectors and Cables at DNA. The Nashik Connectors offer durability and reliability. Check other "Connectors and Cables" that we have in stock.

If you are looking for specific electronic components, reach out to us. We can import parts not available in stock. We support retail and bulk orders. Check out related items like Power Supply, Humidity & Temperature Sensor, and more. Contact Us.

Features of BOX HEADER 10 PIN ST Connectors

• Dual-row 10-pin configuration
• Standard 2.54 mm pitch
• Straight through-hole mounting
• Boxed/shrouded design for polarization
• Compatible with IDC ribbon cable connectors
• Robust thermoplastic housing
• Gold or tin-plated contacts

Specification of BOX HEADER 10 PIN ST Connectors

• Number of Pins: 10
• Mounting Type: Through-hole
• Orientation: Straight
• Pitch: 2.54 mm
• Housing Material: Thermoplastic
• Current Rating: 1–3 A per contact
• Voltage Rating: Up to 250V AC/DC

Applications of BOX HEADER 10 PIN ST Connectors

• Industrial automation systems
• Embedded systems
• Consumer electronics
• Robotics and IoT devices
• Test and development boards

Package Includes

• 1 X BOX HEADER 10 PIN ST Connectors
