MY1016Z2 250W 24V GEARED DC MOTOR FOR E-BIKE


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-04

  • SKU: 1940 |

Availability: NotInStock priceValidUntil: 2026-11-04

  • Rs. 3,894.00 (inc GST)
    Rs.3,300.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

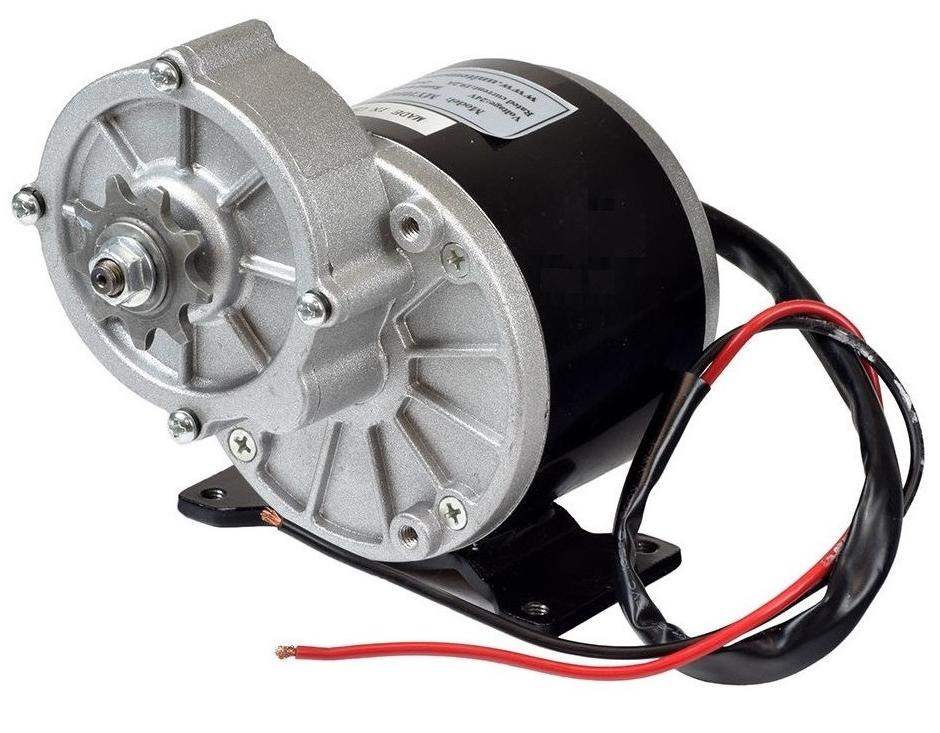

MY1016Z2 250W 24V GEARED DC MOTOR FOR E-BIKE

MY1016Z2 24 volt 250 Watt Electric Motor for E-bike

Want to make your own battery operated vehicle? This this geared electric motor is perfect for you. MY1016Z2 is a 24 volt  250 watt geared electric motor perfect for your electric scooter and bike motor. It Comes with 9 Tooth only fits 410 bicycle chains. This electric motor is capable of rotation in either the clock wise or counter clockwise direction by reversing the motor's power wires (reversing the polarity to the motor).

Features of MY1016Z2 250W 24V GEARED DC MOTOR FOR E-BIKE

  • Rated Current : 13.4 Amps
  • Efficiency : 78%
  • Direct Drive
  • Suitable for Forwarding and Reverse Operations
  • 9 Tooth Sprocket for 1/2″ x 1/8″ Pitch Chain

Specifications of MY1016Z2 250W 24V GEARED DC MOTOR FOR E-BIKE

  • Model : MY1016 250WZ2
  • RPM : 300 (after gearbox reduction)
  • Full load current : 13.4 Ampere ;
  • No-load current : 2.2 Ampere
  • Torque Stall : 240 kgcm ;
  • constant torque : 80 kgcm
  • Operating Power : 250 Watee (0.33 Horsepower)
  • Operating Voltage : 24 Volts
  • Rated Speed(After Reduction) : 400
  • Stall Torque(Kg-Cm) : 40 N.m (400 kg-cm)
  • Gearbox : Yes
  • Length of Cable : 0.5 Meter
  • Sprocket : 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain
  • Efficiency : ≥78%.
  • Reduction Ratio : 9.78:1
