• 4027 Dual J-K flip-flop

Product Images are shown for illustrative purposes only and may differ from actual product.

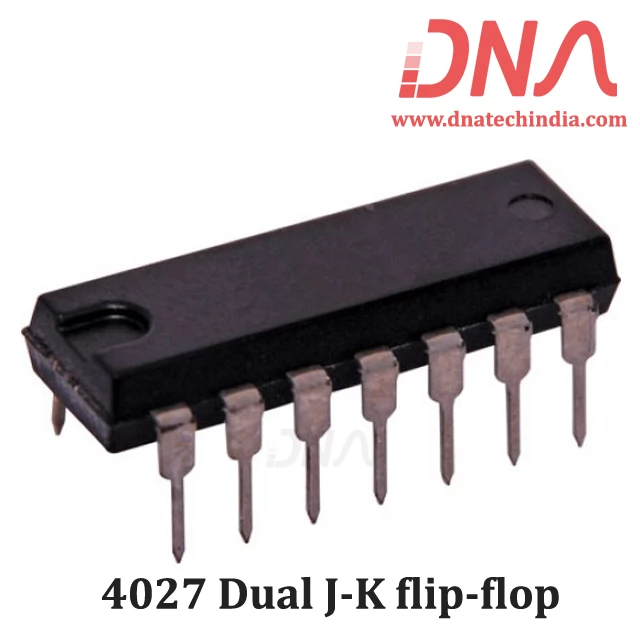

4027 Dual J-K flip-flop

  • Stock: 3
  • SKU: 0253 | DAA115
  • Rs. 20.06 (inc GST)
    Rs.17.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

4027 Dual J-K flip-flop

The HEF4027B is a edge-triggered dual JK flip-flop which features independent set-direct (SD), clear-direct (CD), clock (CP) inputs and outputs (Q, Q).

Data is accepted when CP is LOW, and transferred to the output on the positive-going edge of the clock. The active HIGH asynchronous clear-direct (CD) and set-direct (SD) inputs are independent and override the J, K, and CP inputs. The outputs are buffered for best system performance. Schmitt trigger action makes the clock input highly tolerant of slower rise and fall times. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.

We have Various sizes of 4000 Series IC's. Check out our complete collection of 4000 Series IC's.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 4027 Dual J-K flip-flop

  • Fully static operation
  • 5 V, 10 V, and 15 V parametric ratings
  • Standardized symmetrical output characteristics
  • Specified from 40 C to +85 C
  • Complies with JEDEC standard JESD 13-B

Application 4027 Dual J-K flip-flop

  • Registers
  • Counters
  • Control circuits

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
