6Pin 128x64 Blue OLED Display Module
- Product Code: 1014
- Availability: 1
Price :Rs.368.16 (inc GST)
Quantity Pricing (inc GST)
3 + 362.64 7 + 357.12 10 + 351.59 20 + 346.07
GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
|Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.|

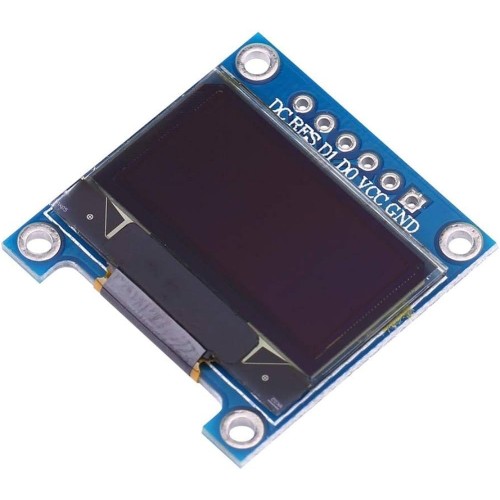

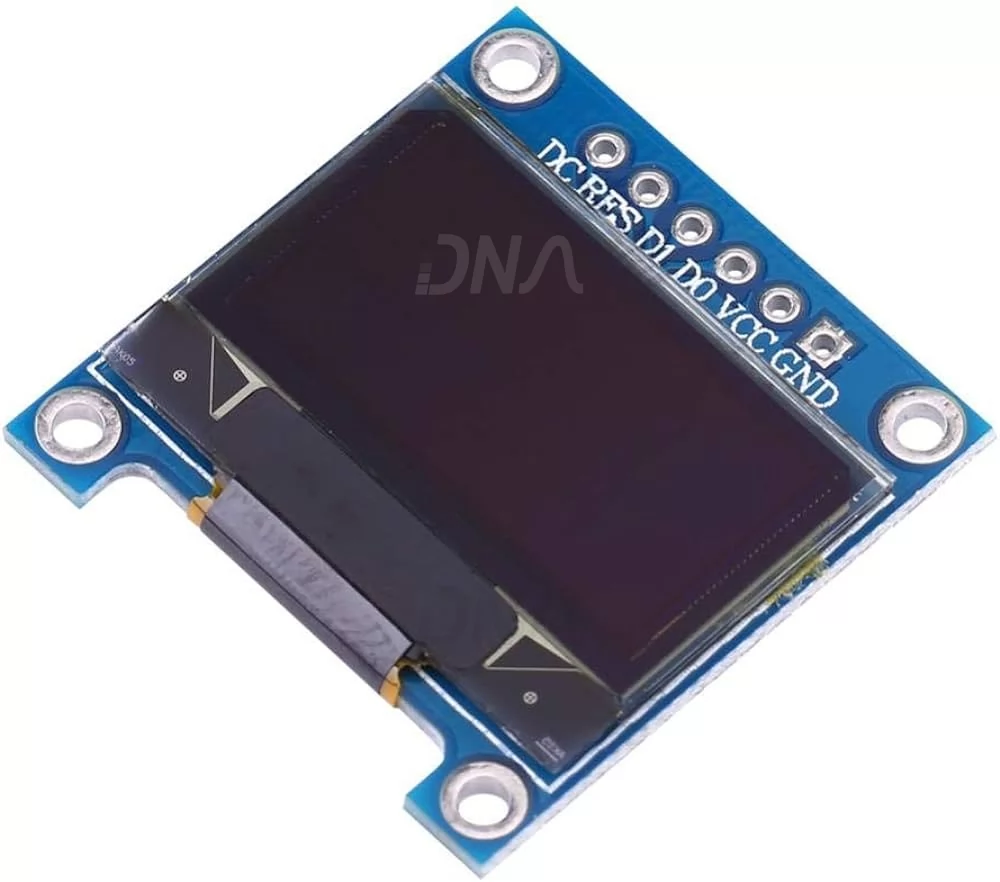

6Pin 128x64 Blue OLED Display
This is a 0.96 inch
white OLED display module. The display module can be interfaced with
any microcontroller using SPI/IIC protocols. It is having a resolution
of 128x64. The package includes display board,display, 6 pin male header presoldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
OLED monochrome 128x64 dot
matrix display module. The characteristics of this display module are
high brightness, self-emission, high contrast ratio, slim/thin outline,
wide viewing angle, wide temperature range and low power consumption, Blue color.
Features of 6-Pin OLED
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Display size: 0.96"
Resolution radio:128 x 64
Interface modes: SPI
working voltage: 3.3V
Control Chip: SSD1306
