Description

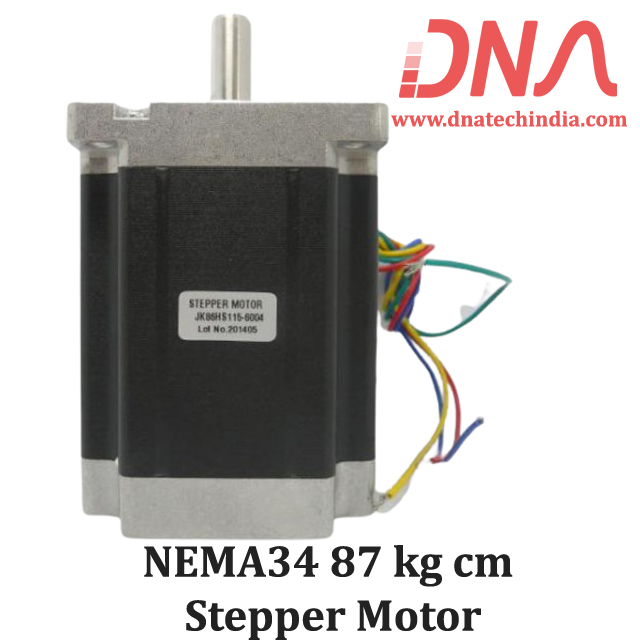

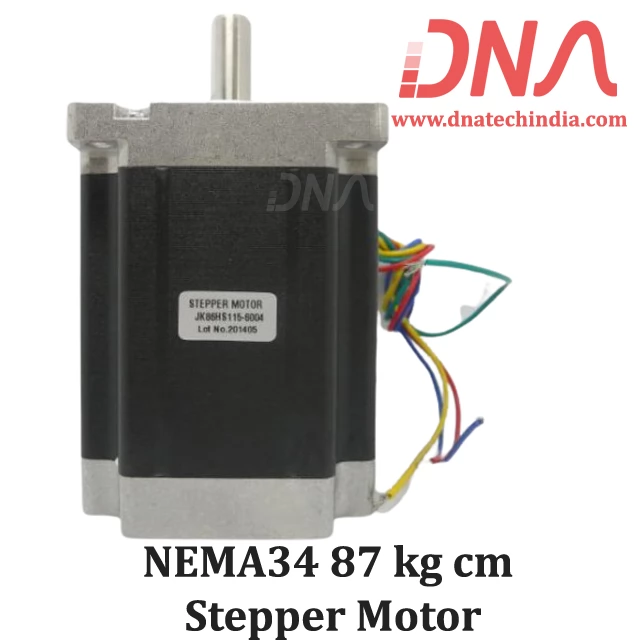

NEMA34 87 kgcm Hybrid Stepper Motor

This Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

It will give you 87 kg-cm of torque at 5 Ampere of current per phase. You can use them where you need high torque at high speed.

This NEMA 34 Stepper Motor is a powerhouse when it comes to larger machines that require high torques. These are specially designed to withstand high torque requirements of large CNC machines.

The NEMA34 87 kg-cm Hybrid Stepper Motor is a brushless dc motor which operates in Open Loop Control system. The motor shaft is customized and has a shape of 94-UP Mustang V. This type of shaft is useful in providing stability in high power operation.

We have Various sizes of Stepper Motors.Check out our complete collection of Stepper Motors

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of NEMA 34 87 kg-cm Hybrid Stepper Motor

It can be operated at exceptionally high speeds.
Comparably more powerful than NEMA17 and NEMA23 motors.
They are high torque stepper motors.
Input pulse decides the rotation angle of the motor.
High accuracy of around 3 to 5% a step.
Provides good starting, stopping and reversing.

Specifications Of NEMA 34 87 kg-cm Hybrid Stepper Motor

Step Angle : 1.8°
Holding Torque : 87 kg-cm
Operating Voltage : 4.2 Volts
Supply Current (A) : 5 A/Phase
No. of Leads : 4
Weight (gm) : 3620 grams
Frame Size (mm) : 85 x 85
Shaft Diameter (mm) : 14
Shaft Length (mm) : 37
Step Angle Accuracy : ±5%
Cable Length : 42 CM

Checkout our collection of various types of NEMA17, NEMA23 & NEMA34 Stepper motors.
