  • BUZ350 MOSFET

Product Images are shown for illustrative purposes only and may differ from actual product.

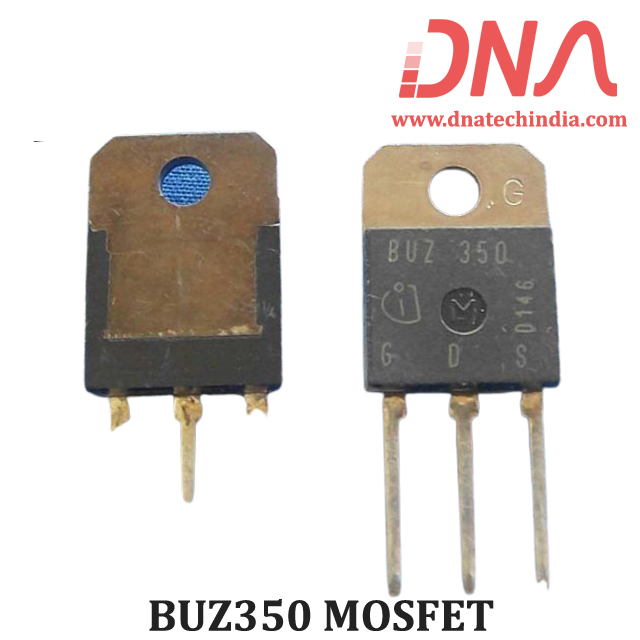

BUZ350 MOSFET

  • Product Code: 1215
  • Availability: 9
  • Price :

    Rs.293.82 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

BUZ350 MOSFET

Buz350 is a Power MOS transistor transistor used for general applications.

Features of BUZ350 MOSFET

  • N channel
  • Enhancement mode
  • Avalanche-rated
  • Continuous drain current TC=33°C ID:22A
  • Pulsed drain current TC = 25°C IDpuls:88
  • Avalanche current, limited by Tjmax IAR 22
  • Avalanche energy, periodic limited by Tjmax EAR 12 mJ
  • Avalanche energy, single pulse
  • ID = 22 A, VDD = 50 V, RGS = 25 Ω
  • L = 1.39 mH, Tj=25 °C EAS 450
  • Gate source voltage VGS: ± 20 V
  • Power dissipation TC = 25°C Ptot: 125W
  • Operating temperature Tj: -55 ... + 150 °C
  • Storage temperature Tstg: -55 ... + 150
  • Thermal resistance, chip case RthJC ≤ 1 K/W
  • Thermal resistance, chip to ambient RthJA 75
  • DIN humidity category, DIN 40 040 E
  • IEC climatic category, DIN IEC 68-1 55 / 150 / 56
