Product Images are shown for illustrative purposes only and may differ from actual product.

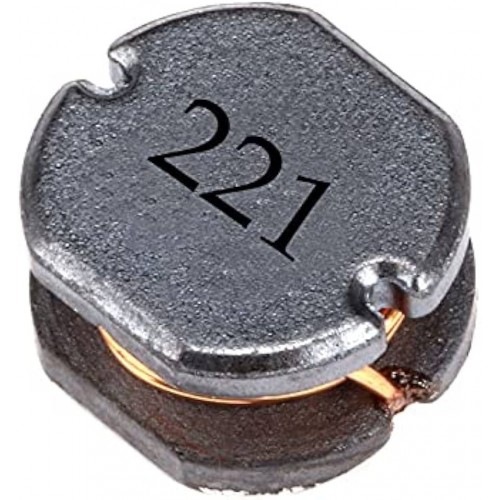

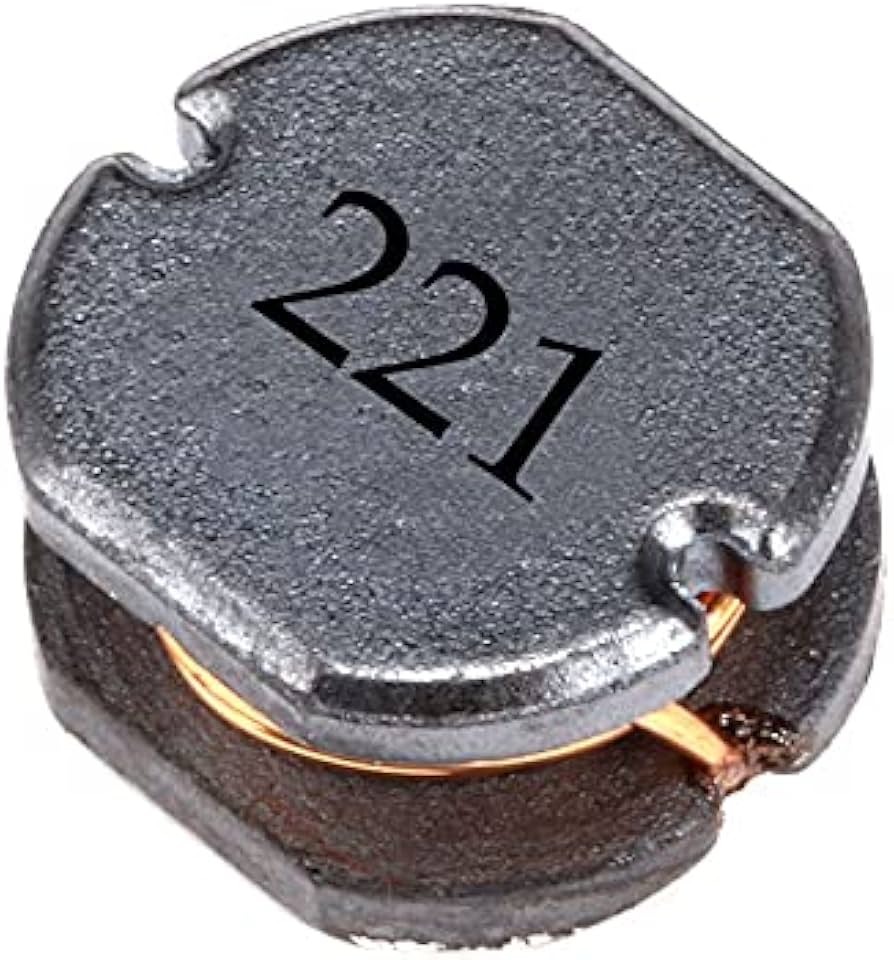

CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- Stock: 49
- SKU: 7594 | DAE924
-
Rs. 23.60 (inc GST)
Rs.20.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
A CD75 220μH Surface Mount Power Inductor (220 micro H) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads on a surface mount component. The CD75 220µH inductor features a ferrite core, which provides stable magnetic properties and reduces core losses. This allows for consistent performance across a range of currents and frequencies. It is typically used in power circuits where efficient energy storage and minimal power loss are essential, especially in compact designs that require stable inductance.
DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- High Inductance Value: 220µH, ideal for applications that need high inductance without sacrificing efficiency.
- Compact Size: Small footprint, optimized for PCB space savings.
- High Current Handling: Capable of handling high currents without significant saturation, making it suitable for power intensive applications.
- Low DC Resistance (DCR): Reduces power loss, enhancing circuit efficiency and minimizing heat generation.
- Reliable Performance: Provides stable inductance over a wide range of frequencies and temperatures.
- Durability: Built for long-term reliability in demanding power applications.
Specifications of CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
- Inductance: 220 µH ±20%
- DC Resistance (DCR): Typically around 0.3Ω (may vary depending on manufacturer specifications)
- Saturation Current: Typically rated around 1A to 1.2A (depending on specific model and manufacturer)
- Core Material: Ferrite, providing efficient energy storage and stable performance.
- Operating Temperature Range: -40°C to +125°C, suitable for various environmental conditions.
- Mounting Type: Surface mount (SMD) or through-hole, based on the CD75 model.
- Inductance: 220 µH ±20%
- DC Resistance (DCR): Typically around 0.3Ω (may vary depending on manufacturer specifications)
- Saturation Current: Typically rated around 1A to 1.2A (depending on specific model and manufacturer)
- Core Material: Ferrite, providing efficient energy storage and stable performance.
- Operating Temperature Range: -40°C to +125°C, suitable for various environmental conditions.
- Mounting Type: Surface mount (SMD) or through-hole, based on the CD75 model.
Package Includes
- 1 x CD75 220UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
