ATMEGA16A

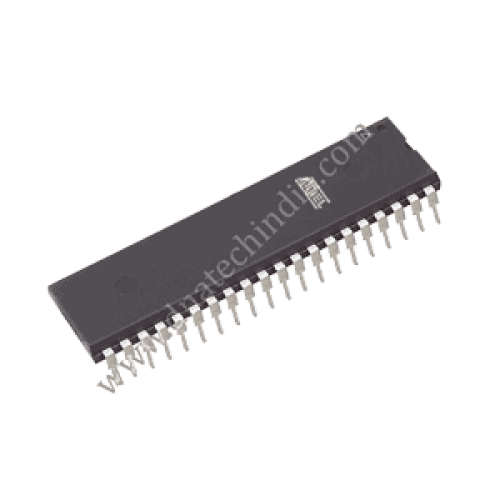

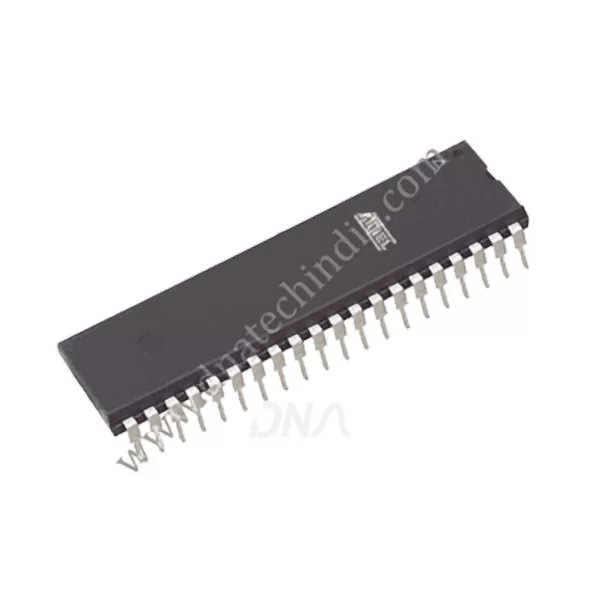

ATMEGA16A: 40 PIN AVR Microcontroller

The ATmega16 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega16 A achieves throughputs approaching 1 MIPS per MHz allowing the system designed to optimize power consumption versus processing speed.

 Features :

• High-performance, Low-power AVR® 8-bit Microcontroller

• Advanced RISC Architecture

– 131 Powerful Instructions – MostSingle-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

– 16K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Byte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C (1)

– Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot ProgramTrue Read-While-Write Operation

– Programming Lock for Software Security

• JTAG (IEEE std. 1149.1 Compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC8 Single-ended Channels 7 Differential Channels in TQFP Package Only 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and    Extended Standby

• I/O and Packages

– 32 Programmable I/O Lines

– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF

• Operating Voltages

– 2.7 - 5.5V for ATmega16L

– 4.5 - 5.5V for ATmega16

• Speed Grades

– 0 - 8 MHz for ATmega16L

– 0 - 16 MHz for ATmega16

• Power Consumption @ 1 MHz, 3V, and 25⋅C for ATmega16L

– Active: 1.1 mA

– Idle Mode: 0.35 mA

– Power-down Mode: < 1 µA
