  • ATMEGA8535 Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

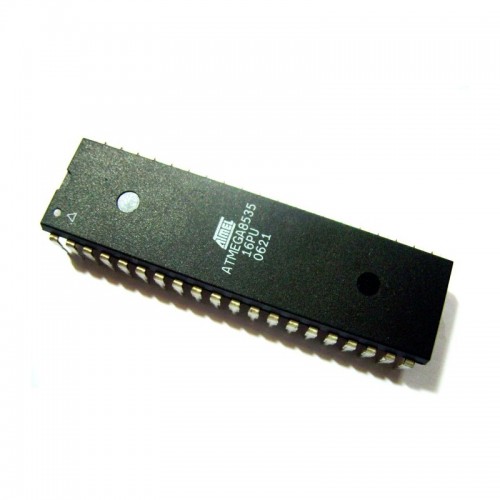

ATMEGA8535 Microcontroller

  • Stock: 1
  • SKU: 0759 | DAA335
  • Rs. 413.00 (inc GST)
    Rs.350.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Atmega8535 Microcontroller

 The device supports throughput of 16 MIPS at 16MHz and operates between 4.5-5.5 volts.

Atmega8535 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B SRAM, 512B EEPROM, and an 8-channel 10-bit A/D converter.

By executing instructions in a single clock cycle, the device achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features of Atmega8535

  • Flash (kBytes) : 8 kBytes

  • Pin Count : 44

  • Max. Operating Freq. (MHz) : 16 MHz

  • CPU : 8-bit AVR

  • # of Touch Channels : 16

  • Hardware QTouch Acquisition : No

  • Max I/O Pins : 32

  • Ext Interrupts : 3

  • USB Speed : No

  • USB Interface : No

  • SPI : 1

  • TWI (I2C) : 1

  • UART : 1

  • Graphic LCD : No

  • Video Decoder : No

  • Camera Interface : No

  • ADC Channels : 8

  • ADC Resolution (bits) : 10

  • ADC Speed (ksps) : 15

  • Analog Comparators : 1

  • Resistive Touch Screen : No

  • DAC Channels : 0

  • DAC Resolution (bits) : 0

  • Temp. Sensor : No

  • Crypto Engine : No

  • SRAM (kBytes) : 0.5

  • EEPROM (Bytes) : 512

  • Self Program Memory : Yes

  • External Bus Interface : 0

  • DRAM Memory : No

  • NAND Interface : No

  • pico-Power : No

  • Temp. Range (deg C) : -40 to 85

  • I/O Supply Class : 2.7 to 5.5

  • Operating Voltage (Vcc) : 2.7 to 5.5

  • FPU : No

  • MPU / MMU : no / no

  • Timers : 3

  • Output Compare Channels : 4

  • Input Capture Channels : 1

  • PWM Channels : 4

  • 32kHz RTC : Yes

  • Calibrated RC Oscillator : Yes

  • Watchdog : Yes

  • CAN : 0

  • LIN : 0

  • Ethernet : 0

  • I2S : No
