Cytron Dual Channel Enhanced 13Amp DC Motor Driver 13S
-
Rs. 891.36 (inc GST)
Rs.755.39 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Cytron Dual Channel Enhanced 13Amp DC Motor Driver 13S
13Amp 6V-30V DC Motor Driver
Brushed motor is the most widely used motor because of the ease of operation. Just supply the two terminals DC power supply, the motor will start rotating! Yet, you need a good motor driver to control the speed and direction from microcontroller. You are at the right page, MD13S is one of the easiest to use brushed motor
MD13S has great improvement in current protection which MD10C does not have. With new circuit and design, MD13S is able to limit and support current up to 30A max(10 seconds). And the continuous current is at 13A without heatsink (at room temperature of 25°C).
Not to forget it is GROVE compatible, so get yourself a Grove shield. Oh, did I mention? MD13S is smaller than MD10C.
Which brush motor is good to be driven by MD13S? As long as the motor:
- Is DC Brush motor (Two Terminals)
- Operating voltage from 6V to 30V
- Rated Current <= 13A
- Peak Current <= 30A
Example of suitable DC brush motor with MD13S (Not limit to):
- SPG50 series
- SPG30 and SPG30E series
- IG45 series
- IG42 series
- IG32 series
- DKM 40W series
We have Various sizes of Cytron. Check out our complete collection of Cytron.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features:
- Bi-directional control for 1 brushed DC motor
- Support motor voltage from 6V to 30VDC
- Maximum current up to 13A continuous and 30A peak (10 seconds)
- GROVE compatible
- 3.3V and 5V logic level input.
- Solid state components provide faster response time and eliminate the wear and tear of mechanical relay
- Fully NMOS H-Bridge for better efficiency and no heat sink is required
- Regenerative Braking
- Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency)
- Support both locked-antiphase and sign-magnitude PWM operation, *NOT RC (Radio Control) PWM
- SMD compatible
- RoHS, FCC and CE compliance
- Dimension: 61mm x 33mm

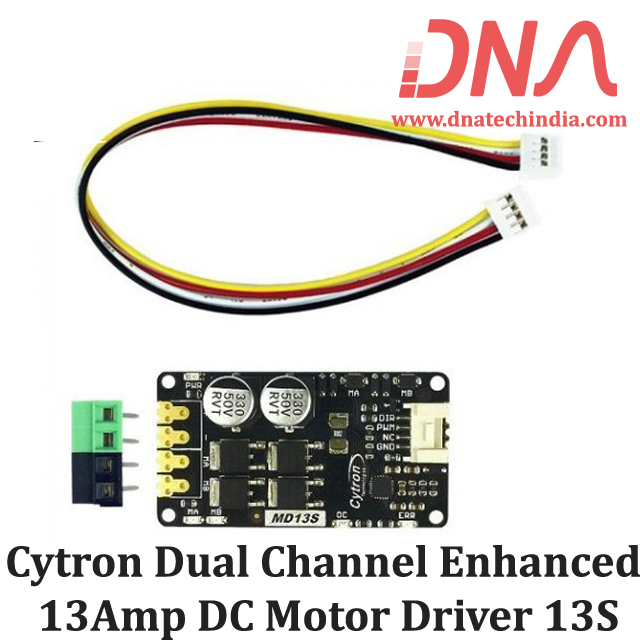

Packing List:
- 1 x MD13S motor driver board
- 1 x Green + Black 2-way terminal blocks (Normally Black is for Motor, Green is for Power)
- 1 x Grove connector (Grove to Grove)
Related Link:
- User's Manual
- Arduino Library with Example (Github)
- Controlling MD10C with Arduino, just follow the connection and code, MD10C and MD13S is compatible
- MD13S Footprint Eagle library
- Fritzing file
- RoHS Certificate
- FCC Certificate
- CE Certificate
- Example project: Plant cultivation temperature adjustment kit ITBOX, uses MD13S to control peltier, by Japanese user
