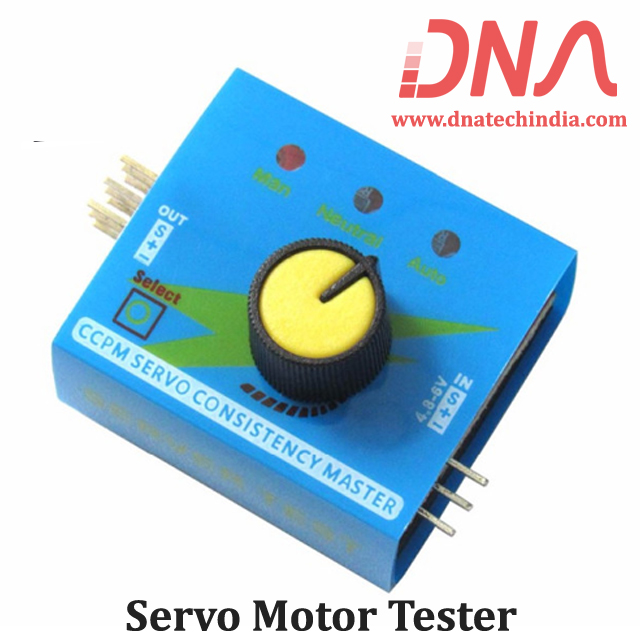

3 Channel Digital Servo Motor Tester

Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control

The Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible.

Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively

DNA Solutions has large collection of various types of Motor Driver Module. Check our complete collection of Motor Driver Modules.

Operation Modes of Digital Servo Motor Tester:

• Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle

• Manual mode:- Turn the knob with different speed, check the reaction time

• Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model

Specifications & Features of 3 channel Digital Multi Servo Motor Tester:

• Operating Voltage: DC 4.8-6V

• Offer 3 modes to check servos or ESC

• The Manual Mode allows you to turn the knob to different speeds and check the reaction time

• The Neutral mode makes the servo go back to the neutral point

• The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible

• Connect to up to 3 servos simultaneously

• Connect up to 3 ESCs to test and compare their reaction time respectively

• Built with LED indicators

• Output signal : 1.5ms±0.5ms

• Size : 36.5 x 31.0 x 22mm
