Product Images are shown for illustrative purposes only and may differ from actual product.

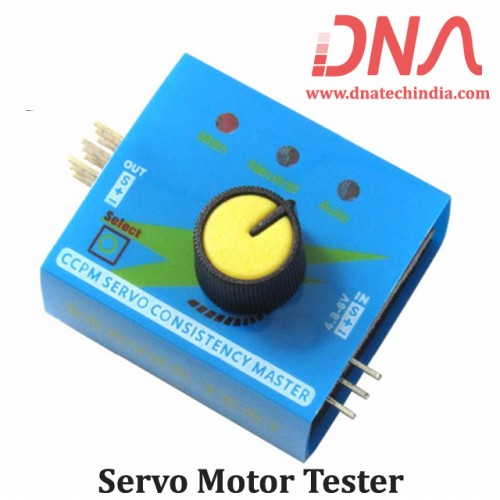

Digital Multi Servo Motor Tester
- Stock: 10
- SKU: 2663 | DAE114
-
Rs. 117.46 (inc GST)
Rs.99.54 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
3 Channel Digital Servo Motor Tester
Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control
The Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible.Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively
DNA Solutions has large collection of various types of Motor Driver Module. Check our complete collection of Motor Driver Modules.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Operation Modes of Digital Servo Motor Tester:
- Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle
- Manual mode:- Turn the knob with different speed, check the reaction time
- Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model
Specifications & Features of 3 channel Digital Multi Servo Motor Tester:
- Operating Voltage: DC 4.8-6V
- Offer 3 modes to check servos or ESC
- The Manual Mode allows you to turn the knob to different speeds and check the reaction time
- The Neutral mode makes the servo go back to the neutral point
- The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
- Connect to up to 3 servos simultaneously
- Connect up to 3 ESCs to test and compare their reaction time respectively
- Built with LED indicators
- Output signal : 1.5ms±0.5ms
- Size : 36.5 x 31.0 x 22mm
