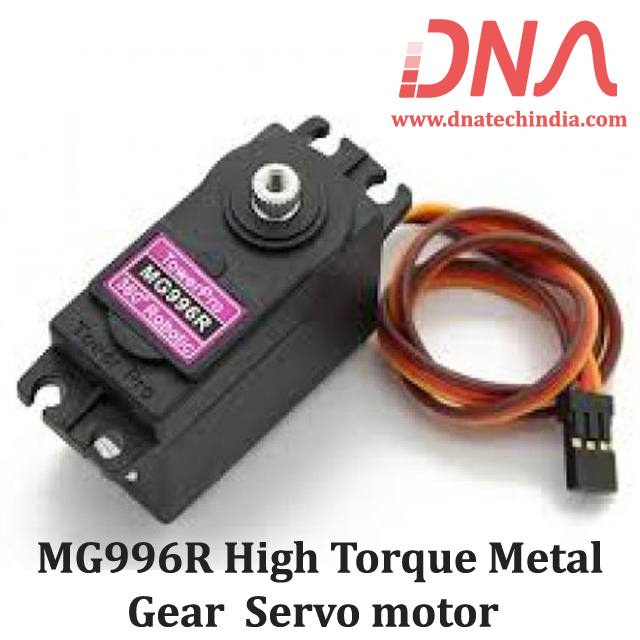

TowerPro MG996R High Torque Metal Gear Servo motor

This is an upgraded version of the famous Towerpro MG995R servo.

It has now been redesigned with a  PCB and IC control system which makes it perfect for robotic use as it has the capability of rotating clockwise and anti-clockwise continously if you wish to do so. Its internal gearing and motor are also upgraded to improve dead bandwith and centering.
MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project. This motor generates a massive 15kg.cm torque. We have carefully selected this servo motor for the best quality and performance among the numerous similar motors available in the market. It comes with a 3-pin power ,control cable and mounting hardware.

Features TowerPro MG996R Servo motor

• High Torque (11kg)

• Reasonably fast (0.15sec/60°)

• Metal gears

• Ballraced

• The ability to rotate continously through 360° both ways

Specifications of TowerPro MG996R Servo motor

• Model : MG996R Robotic Servo

• Operating Voltage : 4.8~6.6V

• Stall Torque : 9.4kg@4.8V~11kg@6V

• Operating Speed : 0.19sec/60°@4.8V~0.15sec/60°@6V

• Deadband : 1us

• Gears : Metal

• Bearings : Twin ballraces

• Output Gear Splines : Futaba type (25T)

• Temperature Range : 0~55°C

• Dimensions : 40.7 x 19.7 x 42.9mm

• Weight : 55g

• Servo Plug : JR type

• Servo Lead Length : 320mm

Package Includes

• 1 x MG996R Robotic Servo

• Assortment of arms, servo mounting screws, grommets and brass ferrules.
