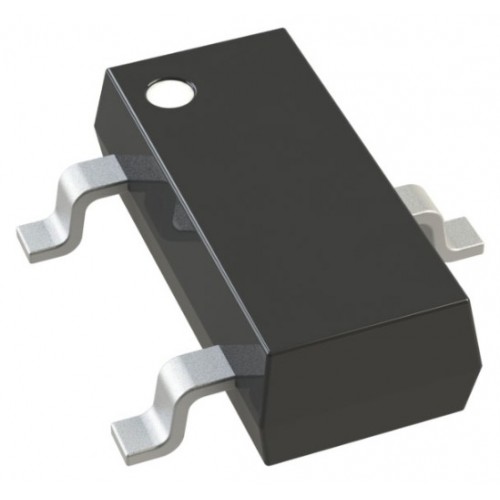

Product Images are shown for illustrative purposes only and may differ from actual product.

DMG2305UX-7 P CHANNEL MOSFET


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-05-12

  • SKU: 7967 | DAH314

Availability: NotInStock priceValidUntil: 2026-05-12

  • Rs. 89.30 (inc GST)
    Rs.75.68 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Diodes Incorporated DMG2305UX-7 P-Channel MOSFET

DMG2305UX-7 P-Channel MOSFET for power management with low on-resistance, low input capacitance, and fast switching speed.

The Diodes Incorporated DMG2305UX-7 P-Channel MOSFET is designed for high-efficiency power management applications. This MOSFET features low on-resistance, ensuring minimal power loss during operation, making it ideal for dynamic applications. With low input capacitance, it facilitates efficient high-speed switching, enhancing overall performance in various electronic circuits.

The DMG2305UX-7 P-Channel MOSFET operates at a drain-source voltage of -20V and supports a continuous drain current of -4.2A at 25°C. Its fast switching speed and environmentally friendly design, being RoHS compliant and halogen-free, make it a reliable choice for backlighting, power management functions, and motor controls.

Engineers and hobbyists can trust the DMG2305UX-7 P-Channel MOSFET for diverse applications, including DC-DC converters. Explore how this component can enhance your electronic projects and meet your power management needs.

At DNA, we offer a wide range of MOSFET & IGBT products from reputable brands like Diodes Incorporated. Discover our collection and see how these components can optimize your electronic designs. Check other MOSFET & IGBT that we have in stock.

If you are looking for specific electronic components, DNA can assist you. We can import items that are not readily available and support both retail and bulk orders. Explore related components like Inductors, Analog ICs, MOSFETs, Crystals, and Resistors. Contact Us.

Features of Diodes Incorporated DMG2305UX-7 P-Channel MOSFET

  • Low On-Resistance: 52mΩ
  • Low Input Capacitance: 808pF
  • Fast Switching Speed
  • RoHS Compliant
  • Halogen-Free

Specification of Diodes Incorporated DMG2305UX-7 P-Channel MOSFET

  • Drain-Source Voltage: -20V
  • Continuous Drain Current: -4.2A at 25°C
  • Gate-Source Voltage: ±8V
  • Gate Threshold Voltage: -0.5V to -0.9V
  • Total Gate Charge: 10.2nC

Applications of Diodes Incorporated DMG2305UX-7 P-Channel MOSFET

  • Backlighting
  • Power Management Functions
  • DC-DC Converters
  • Motor Controls

Related Links for Diodes Incorporated DMG2305UX-7 P-Channel MOSFET

Package Includes

  • 1 X Diodes Incorporated DMG2305UX-7 P-Channel MOSFET
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
