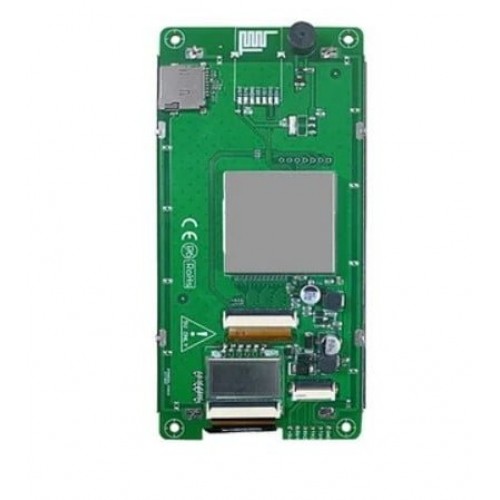

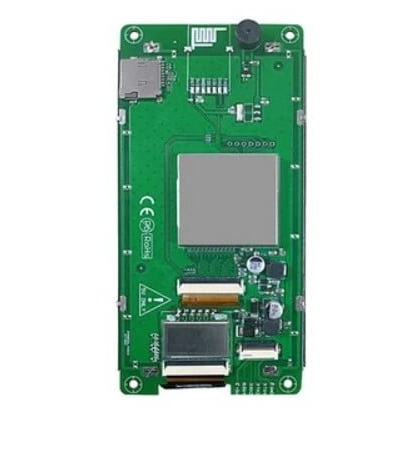

Product Images are shown for illustrative purposes only and may differ from actual product.

DMG85480C050 03WTC LCD Module Touch Panel Display

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-02-19
SKU: 7892 | DAH437

Rs. 2,529.92 (inc GST)
Rs.2,144.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

DMG85480C050 03WTC LCD Module Touch Panel Display

DMG85480C050 03WTC LCD Module Touch Panel Display

The DMG85480C050 03WTC is a 5.0-inch intelligent LCD module developed by DWIN, featuring a capacitive touch panel and an IPS TFT display. It offers a resolution of 480×854 pixels and supports 16.7 million colors, ensuring vibrant and clear visuals. The module is powered by DWIN's T5L1 ASIC, which includes 1MB of NOR Flash memory, with 512KB allocated for user data.

DNA solutions, Nashik has various types of LCD Display. Check out our complete collection of LCD Display.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of DMG85480C050 03WTC LCD Module Touch Panel Display

5.0-inch IPS TFT LCD with a resolution of 480×854 pixels
Wide viewing angles of 85° in all directions (Left/Right/Up/Down)
270 nits for the DMG85480C050_03WTC model
Supports point touch and drag functionalities
Surface hardness rated at 6H, ensuring durability
TTL/CMOS interface with a 10-pin 1.0mm connection wire

Specifications of DMG85480C050 03WTC LCD Module Touch Panel Display

Operating voltage between 4.5V and 5.5V, with a typical value of 5V
Operating current: 260mA at 5V with maximum backlight & 80mA at 5V with the backlight off
Operating temperature range: -20°C to 70°C at 60% relative humidity
Storage temperature range: -30°C to 80°C

Applications of DMG85480C050 03WTC LCD Module Touch Panel Display

Industrial Control Systems
Home Automation
Medical Equipment
Automotive Displays
Consumer Electronics

Package Includes

1 x DMG85480C050 03WTC LCD Module Touch Panel Display

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
