DWIN DMG32240C028 2.8" Smart Resistive Touchscreen Display

  • Stock: 4
  • Brand: DWIN
  • SKU: 3167 | DAE748
  • Rs. 2,712.82 (inc GST)
    Rs.2,299.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

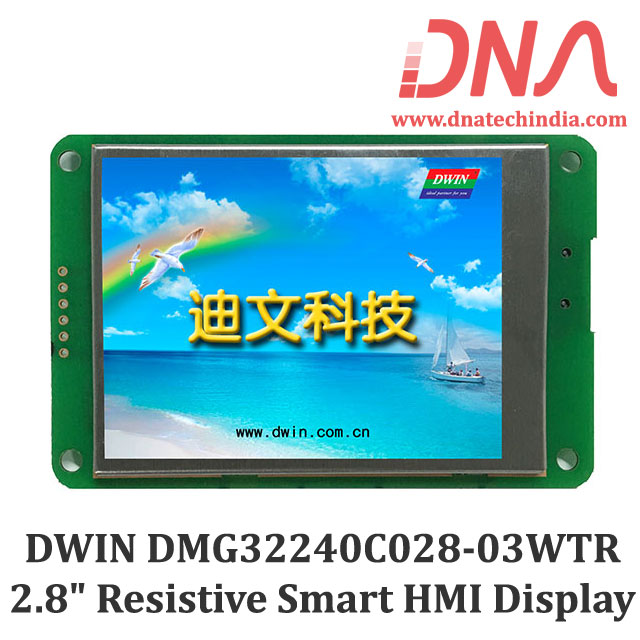

DWIN DMG32240C028-03WTR 2.8" Resistive Smart HMI Display

DWIN DMG32240C028-03WTR 2.8" Smart Resistive Touchscreen HMI Display with UART Interface

The Dwin's DMG32240C028-03WTR is a 2.8" Smart HMI Display with Resistive Touch. This smart UART TFT display module can be programmed using DWIN DGUS software.

DWIN 2.8" Resistive Smart display is very easy to use and integrate with your embedded circuit with a simple serial UART interface. DWIN Displays are high quality and cost effective smart HMI touchscreens. The DWIN DMG32240C028 2.8" Smart Resistive Touchscreen Display can easily be interfaced with microcontrollers & controller boards like Arduino Uno, Arduino Nano, Arduino Mega, ESP8266, ESP32, PIC Microcontrollers, 8051 family of microcontrollers, etc.

This Smart displays are based on T5/T5L ASIC chip which is a dual core high performance GUI Asic which supports DGUS & OS  development mode. DGUS is the abbreviation of a Graphic Application Service Software from DWIN Technology. It is an intelligent GUI software completely innovated by DWIN Technology, and a special software that is unique to DWIN Technology and is solidified in software. Using the DGUS Software tool you can design amazing GUI's without writing a single line of code.

DNA Solutions has various types of SMART HMI display from DWIN & Nextion both of which can be easily interfaced to any microcontroller with serial Interface. Check our our collection of DWIN displays & Nextion displays.

If you are in Nasik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of DWIN DMG32240C028 2.8" SMART HMI DISPLAY

  • Part Number: DMG32240C028
  • Size: 2.8"
  • Touch Type: Resistive
  • Resolution: 320x240
  • Grade: Commercial
  • Color: 262K Colors; 18 Bit
  • Dimensions: 85.2 mm (W) x 55.6 mm (H) x 11.65 mm (T)
  • Backlight: LED
  • Brightness: 200 nit
  • Operating Voltage: 5 Volts
  • Operating Current: 40ma to 105ma
  • Working Temperature: -20 to 70°C

Related Links

Package Includes

1 x DWIN DMG32240C028 2.8" Smart Resistive Touchscreen Display

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
