SN74LS244DWR Octal Buffer/Line Driver With Tri-State Output IC-SOIC-20 Package

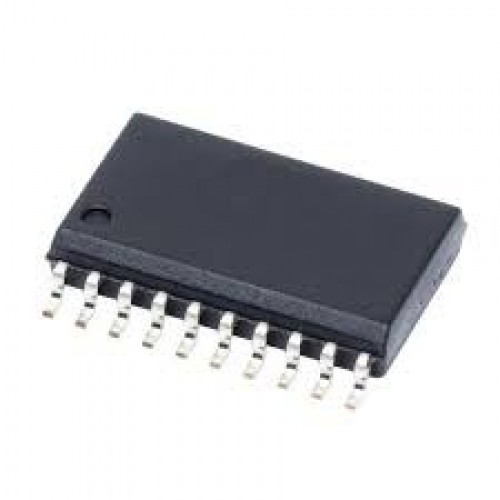

SN74LS244DWR SMD IC

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical, active-low output control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin.

The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs

• Maximum tpd of 15 ns at 5 V

• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

• PNP Inputs Reduce DC Loading

• Hysteresis at Inputs Improves Noise Margins

Applications of SN74LS244DWR Octal Buffer/Line Driver With Tri-State Output IC-SOIC-20 Package

• Servers

• LED Displays

• Network Switches

• Telecom Infrastructure


• Motor Drivers


• I/O Expanders

Package Includes

1 x SN74LS244DWR SMD IC
