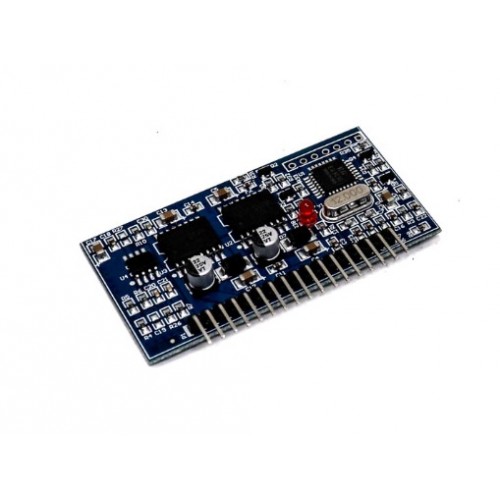

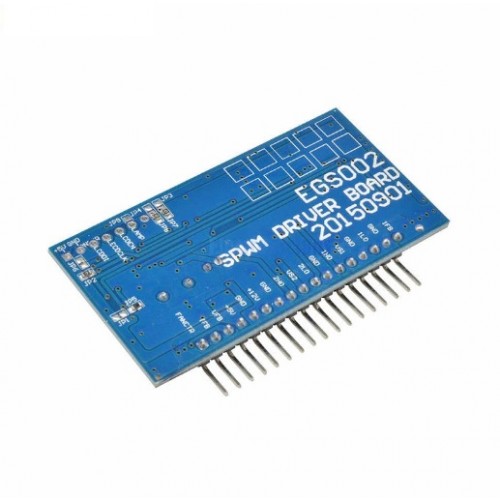

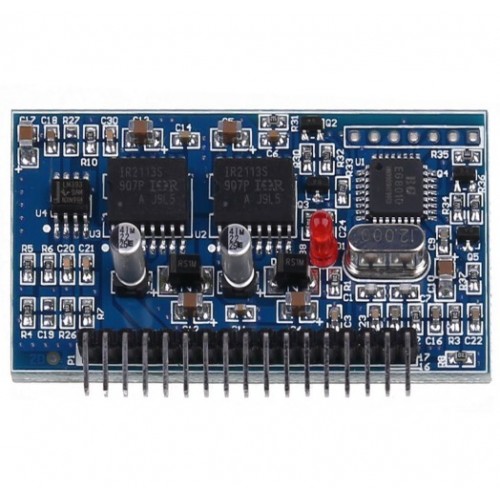

EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module

EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module

EGS002 EG8010 IR2110 Inverter Module with PWM control, voltage protection, and LCD interface.

The EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module is designed for efficient single-phase inverter applications. This module utilizes the ASIC EG8010 as the control chip and the IR2110 driver chip to deliver pure sine wave output. Key features include voltage, current, and temperature protection, along with soft start capabilities for enhanced performance. The module is suitable for various applications including single-phase pure sine wave inverter, UPS systems, and PV inverters.

The EGS002 EG8010 IR2110 integrates a 12MHz crystal oscillator and a PWM carrier frequency of 23.4KHz, ensuring stable operation. It provides real-time feedback on voltage, current, and temperature, and includes safety features such as overvoltage, undervoltage, and overcurrent protection. Additionally, the LCD display interface enhances user interaction, making it a versatile choice for both hobbyists and professionals.

For those seeking reliable inverter solutions, the EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module stands out due to its advanced features and adaptability. It is perfect for applications such as wind power inverters, digital generator systems, and single-phase motor speed controllers. Explore the potential of this module to meet your energy conversion needs.

Explore the robust range of OPAMP products at DNA. The EGS002 EG8010 IR2110 module is a prime example of quality in the OPAMP category. Check other OPAMP that we have in stock.

If you need specific electronic components, contact DNA. We can assist in importing parts and support both retail and bulk orders. Explore our range including Development Modules, Microcontrollers, Nextion Displays, and more. Contact Us.

Features of EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module

• 12MHz crystal oscillator
• PWM carrier frequency 23.4KHz
• Voltage, current, and temperature feedback
• Overvoltage and overcurrent protection
• Soft-start mode
• Serial communication interface

Specification of EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module

• Control chip: EG8010
• Driver chip: IR2110
• Frequency: 23.4KHz
• Output type: Pure sine wave
• Protection: Overvoltage, undervoltage, overcurrent

Applications of EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module

• Single-phase pure sine wave inverter
• PV Inverter
• Wind power inverter
• Uninterruptible Power Supply (UPS) System
• Digital generator system

Package Includes

• 1 X EGS002 EG8010 IR2110 Pure Sine Wave Inverter Module
